Technical¶
Part list¶
The system consist of a multiple components listed below.
Quantity |
Items |
|---|---|
1 |
PAN-TILT Unit |
1 |
PCS connection cable |
1 |
Extendible mast up to 3m |
1 |
Rugged transport box for motion platform |
1 |
Bag for tripod |
Features¶
Ready for operation with Veronte PCS.
Real time tracking.
Data, Telemetry and Video Link Communication
Tripod or Telescopic Mast Mount
Directional and omnidirectional antenna combination.
Compatible with Veronte MCS or third party computers.
Easy to install.
360º free rotation.
Easy maintenance.
Robust and reliable construction.
Warning
Veronte Tracker needs Veronte PCS for operation.
Mechanical Specifications¶
Pan-tilt unit Weight |
17kg max (without antennas and Veronte PCS) |
Mast Weight |
21kg |
Operating temperature |
-20 to 60°C |
Environmental proteciton |
IP54 |
PAN-TILT Transport case |
Rugged plastic case, quad track wheels, pressure purge valve, side handles and carry handle |
Tripod Transport bag |
High quality transport bag |
Electrical Specifications¶
Tracker DC input |
24 VDC |
PCS power |
80W to 130W (depending on mounted antennas) |
Pheripheral I/O Ports |
1x USB, 2x CAN ports, Ethernet, 16x PWM, PPM, 4x ADCs and 1x I2C (From Veronte PCS) |
Dimensions¶

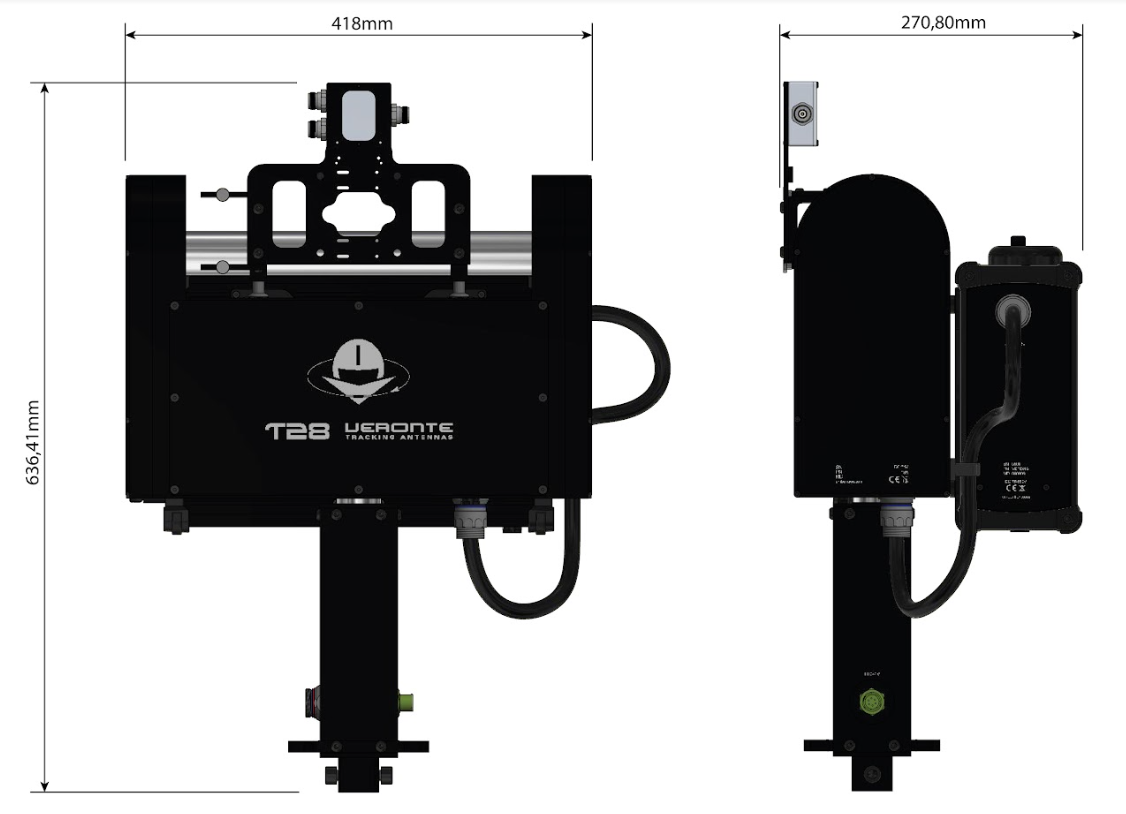

Below you can find a dimensions drawing of Veronte Tracker.
Veronte Tracker dimensions¶
Veronte Tracker is supplied together with a telescopic foldable mast that can be extended up to 3.8m. Next, you can find the maximum and the minimum dimensions of the system when installed.

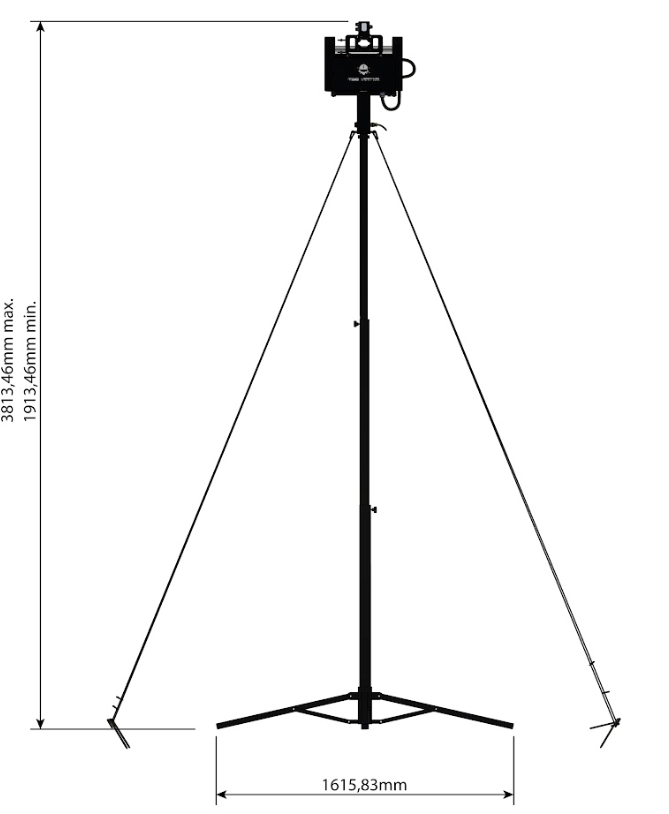

System Dimensions¶
Antenna kit¶
This system is available with three antenna kits in order to fit all operational requirements of each application. Other combinations are possible on request. All versions consist in:
Two antennas
One Combiner Divider
Interconnection cables
The main specifications for standard options are described below.
Veronte Tracker 2.4GHz Antenna Kit¶
Antenna type |
Frequency |
Gain |
RF Power |
Polarization |
Impedance |
Horizontal Beam Width |
Vertical Beam Width |
Weight |
|---|---|---|---|---|---|---|---|---|
Parabolic Grid Antenna |
2.4GHz to 2.5 GHz |
27 dBi |
100W max |
Vertical |
50R |
6.5º |
8º |
7.1kg |
Omnidirectional Antenna |
2.4GHz to 2.5 GHz |
4 dBi |
100W max |
Vertical |
50R |
360º |
50º |
0.09kg |
The kit comes also with:
High power Combiner Divider 100W, 2 Way, N Type, IP67 Outdoor, 698 - 2700 MHz
RF Cable N-Male to N-Male, LMR 195, 50R, 560mm
RF Cable N-Male to N-Male, LMR 195, 50R, 275mm

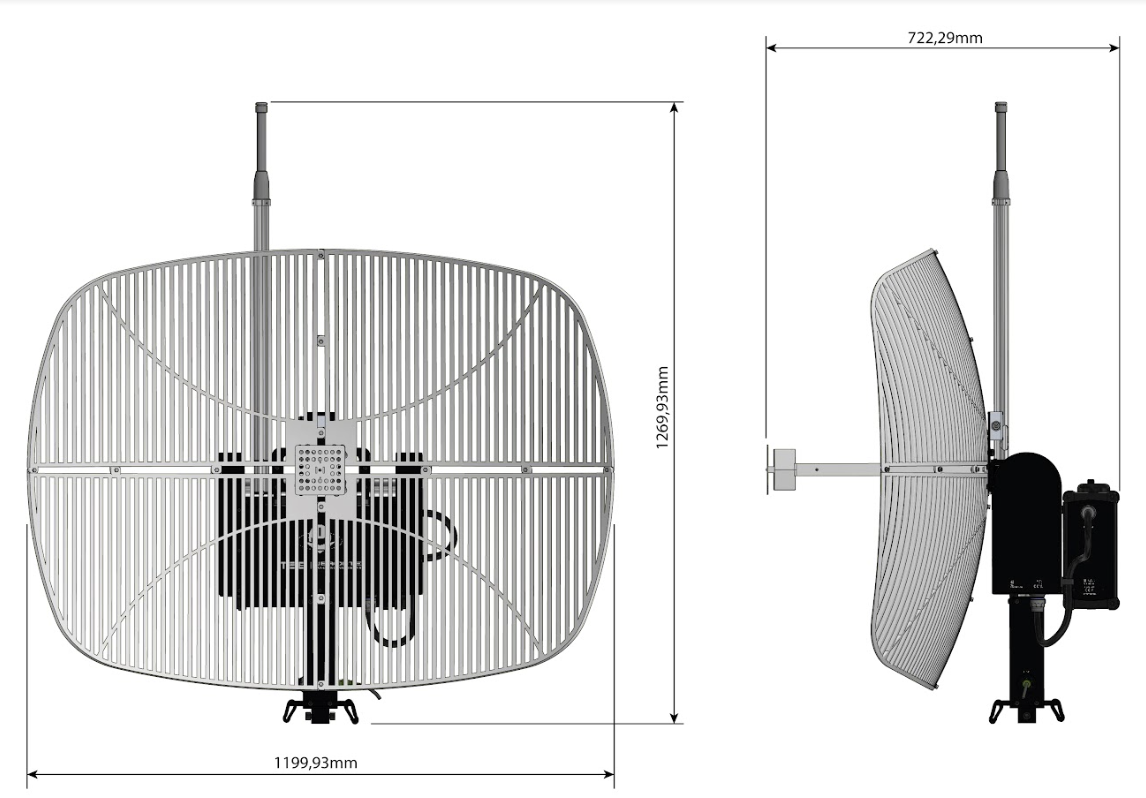

2.4GHz Antenna Kit dimensions¶
Veronte Tracker 900MHz Antenna Kit¶
Antenna type |
Frequency |
Gain |
RF Power |
Polarization |
Impedance |
Horizontal Beam Width |
Vertical Beam Width |
Weight |
|---|---|---|---|---|---|---|---|---|
Yagi Antenna |
902 to 928 MHz |
14 dBi |
50W |
Vertical or horizontal |
50R |
30 º |
30º |
1.8kg |
Omnidirectional Antenna |
902 to 928 MHz |
3 dBi |
50W |
Vertical |
50R |
360º |
44º |
0.81kg |
The kit comes also with:
High power Combiner Divider 100W, 2 Way, N Type, IP67 Outdoor, 698 - 2700 MHz
RF Cable N-Male to N-Male, LMR 195, 50R, 275mm

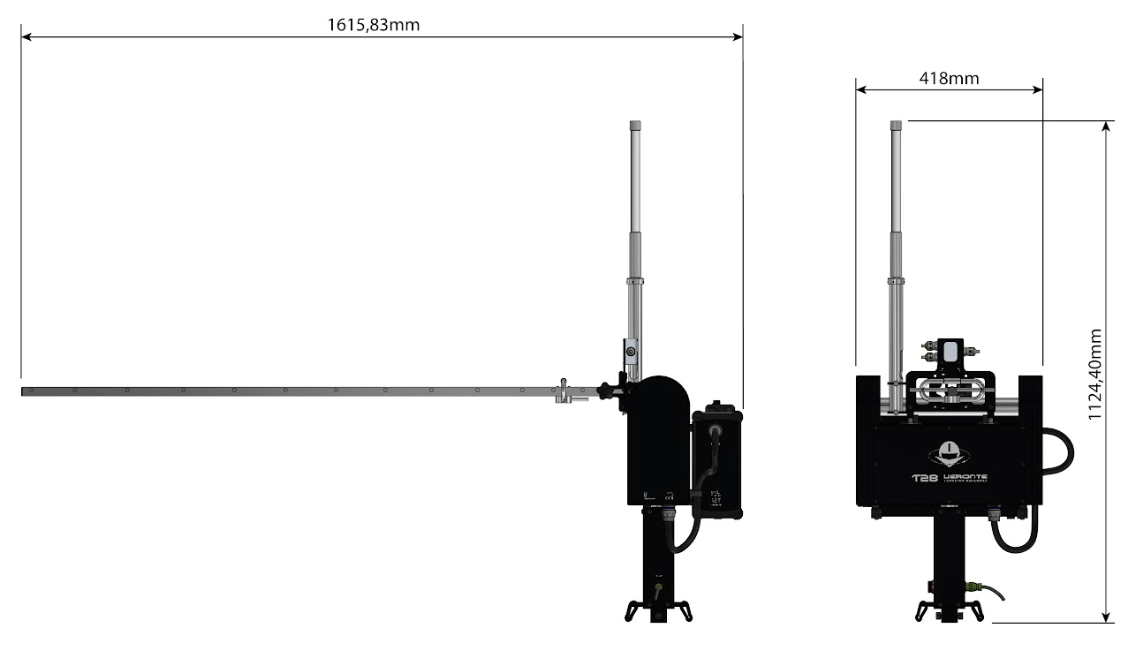

900MHz Antenna Kit dimensions¶
Veronte Tracker 400MHz Antenna Kit¶
Antenna type |
Frequency |
Gain |
RF Power |
Polarization |
Impedance |
Horizontal Beam Width |
Vertical Beam Width |
Weight |
|---|---|---|---|---|---|---|---|---|
Yagi Antenna |
450 to 470 MHz |
12 dBi |
200W max |
Vertical or horizontal |
50R |
45 º |
35º |
1kg |
Omnidirectional Antenna |
400 to 470 MHz |
3.3 dBi |
10W max |
Vertical |
50R |
360º |
45º |
0.48kg |
The kit comes also with:
High power Combiner Divider 150W, 2 Way, N Type, IP67 Outdoor, 430 - 470 MHz
RF Cable N-Male to N-Male, LMR 195, 50R, 560mm
RF Adapter N-Female to SMA Female
400MHz Antenna Kit dimensions¶
Interfaces¶

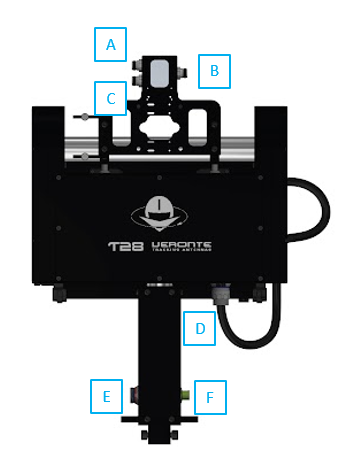

Veronte Tracker Interfaces - Parts identification¶

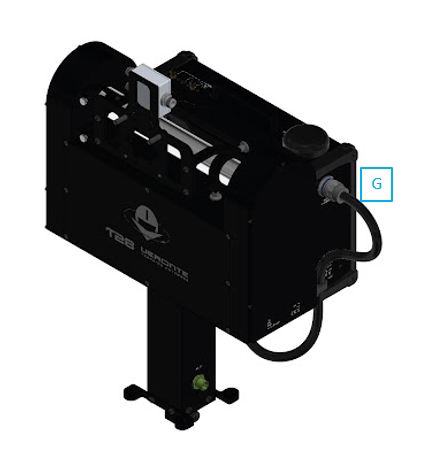

Veronte Tracker Interfaces - Parts identification¶
ID |
Items |
|---|---|
A |
Antenna connection |
B |
To Veronte PCS LOS connector |
C |
Antenna connection |
D |
Veronte Tracker harness connection |
E |
Interface connector |
F |
Power connector |
G |
Veronte PCS output connector |
Warning
Use Veronte Tracker harness connection.
Warning
Veronte Tracker can only be powered through the Power Connector.
