Software Installation¶
Veronte Pipe is the software required to operate the T28 Tracker.
Veronte Configuration¶
After installing, Veronte Tracker default configuration is already prepared for a standard operation.
In case this configuration is not correct, or it was modified and needs to be reset to factory configuration, please find the necessary steps in the Troubleshooting section.
If configuration of Veronte Tracker needs to be modified, please refer to Veronte Autopilot Manual for more information.
Sending vehicle position over to Veronte Tracker
For the operation with Veronte Tracker, the following configuration needs to be added on the AIR UNIT Setup:
Click on ‘Setup’ in the Air Unit dropdown menu
COM Configuration - Preferences Toolbar¶
In the ‘Telemetry’ menu, press the ‘+’ button
COM Configuration - Preferences Toolbar¶

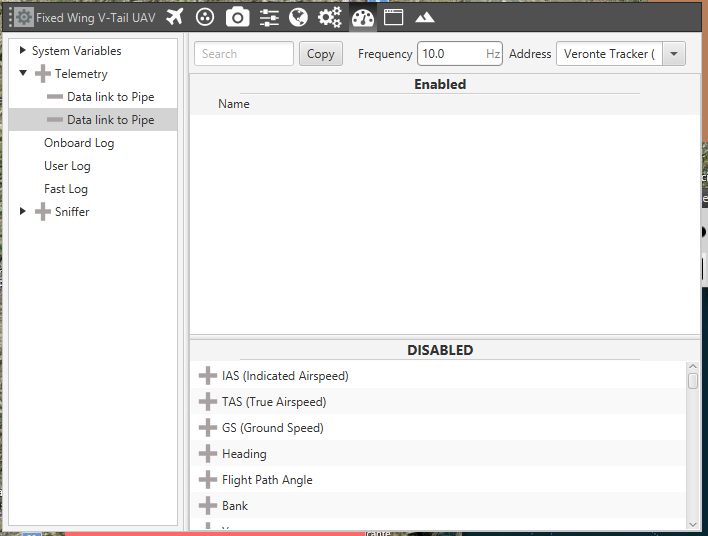

Click on the created ‘Data link to Pipe’
COM Configuration - Preferences Toolbar¶

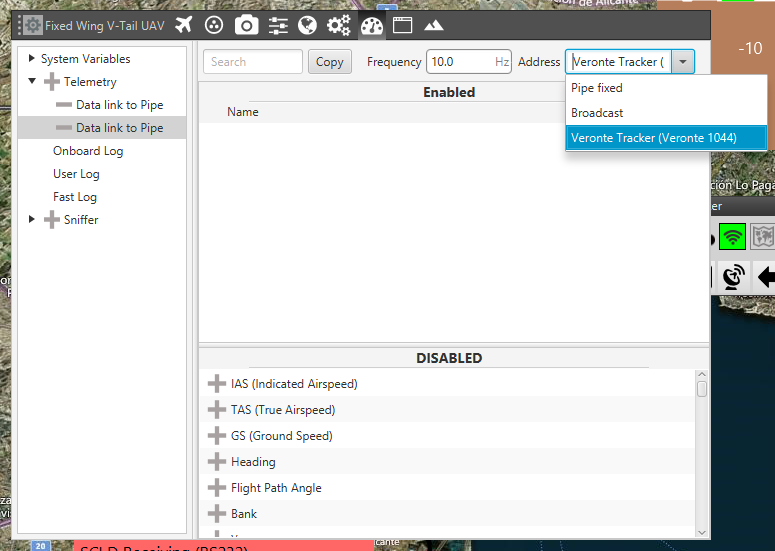

Select ‘Veronte Tracker’ from the dropdown menu in the top right corner
COM Configuration - Preferences Toolbar¶

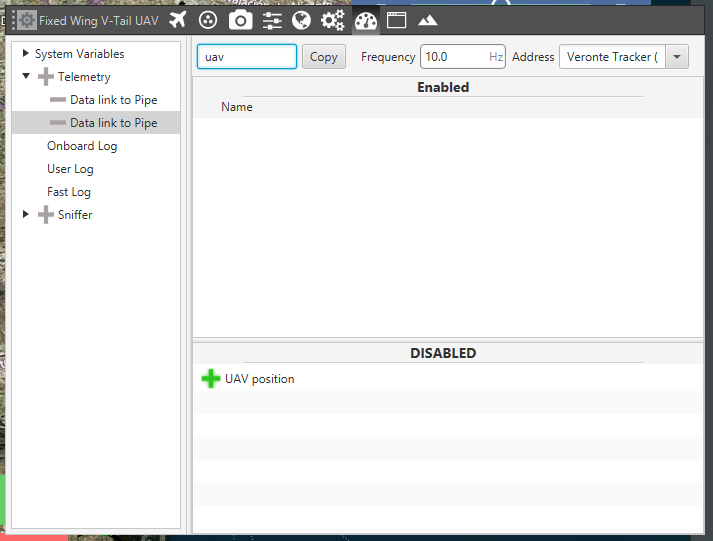

In the ‘Search’ tab, write ‘UAV’ and add ‘UAV position’ to the telemetry vector
COM Configuration - Preferences Toolbar¶

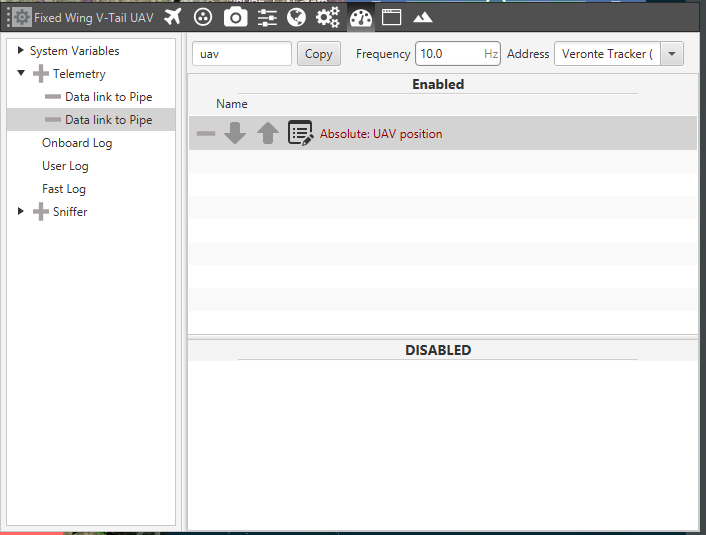

The final configuration should look like this:
COM Configuration - Preferences Toolbar¶
Attention
The above configuration needs to be done on the UAV unit and not on the ground station.
