Operation¶
Connection¶
Follow the steps below in order to setup the connection of Veronte Tracker with your PC
Interface¶
There are three different communication interfaces that can be used for connecting the control station PC with Veronte PCS/Tracker:
USB
Connect the available USB connector directly to one of the USB ports on the PC.
Ethernet
If your Tracker setup is Point-to-Point (TCP), connect it to your PC directly via Ethernet.
If your Tracker setup is Broadcast (UDP), connect it via Ethernet directly to the net access port. A router that provides an IP adress to Veronte PCS via DHCP will be needed for operation.
Wi-Fi
If your Veronte PCS has an enabled Wi-Fi net, you will be able to connect to it using its wireless network.
SSID and password can be found on the PCS case, along with the product Serial Number.
Veronte Pipe¶
Once the selected interface is connected, last step is to enable the connection in Veronte Pipe.
Open Veronte Pipe

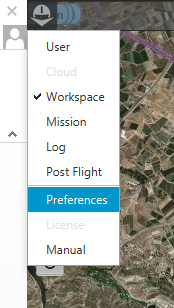

On the top left corner, click on ‘Preferences’
On the Preferences menu, access the ‘Connections’ Tab
USB¶
Click on ‘Add’ and then ‘Serial COM’
If a COM Port was detected, it will be listed here. Click on it in order to enable the connection
TCP (Point to Point)¶
For this setup, Veronte PCS creates a net where it holds a static IP address. The first device connected to the net will be also assigned a specific IP address.
This setup only allows to connect to one device at the same time.
Warning
If a different device wants to be connected, the system needs to be rebooted, or no device should remain connected to the net for 2 minutes. At this point, IP address will be released and can be claimed by a new device
TCP settings can be found on the upper left corner
On ‘Port’ field, type ‘3000’
Click on ‘Enable’ box
Tip
If connection is not setup correctly, please visit the Troubleshooting section
Broadcast (UDP)¶
For this setup, once connected to the net, Veronte Tracker will wait for an IP assignment from a router device via DHCP. Once the IP address is correctly assigned:
Click on ‘Add’ and then ‘Ethernet’

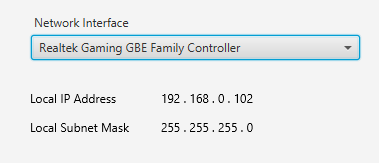

On the displayed dropdown list, select the net adapter that is currently being used to connect to the network.
Start operation¶
COM Configuration - Preferences Toolbar¶
After powering the tracker, the motors will set the antenna to a 45º position with respect to the horizontal axis. Once the PCS has been switched on, the antenna will move to 0º.

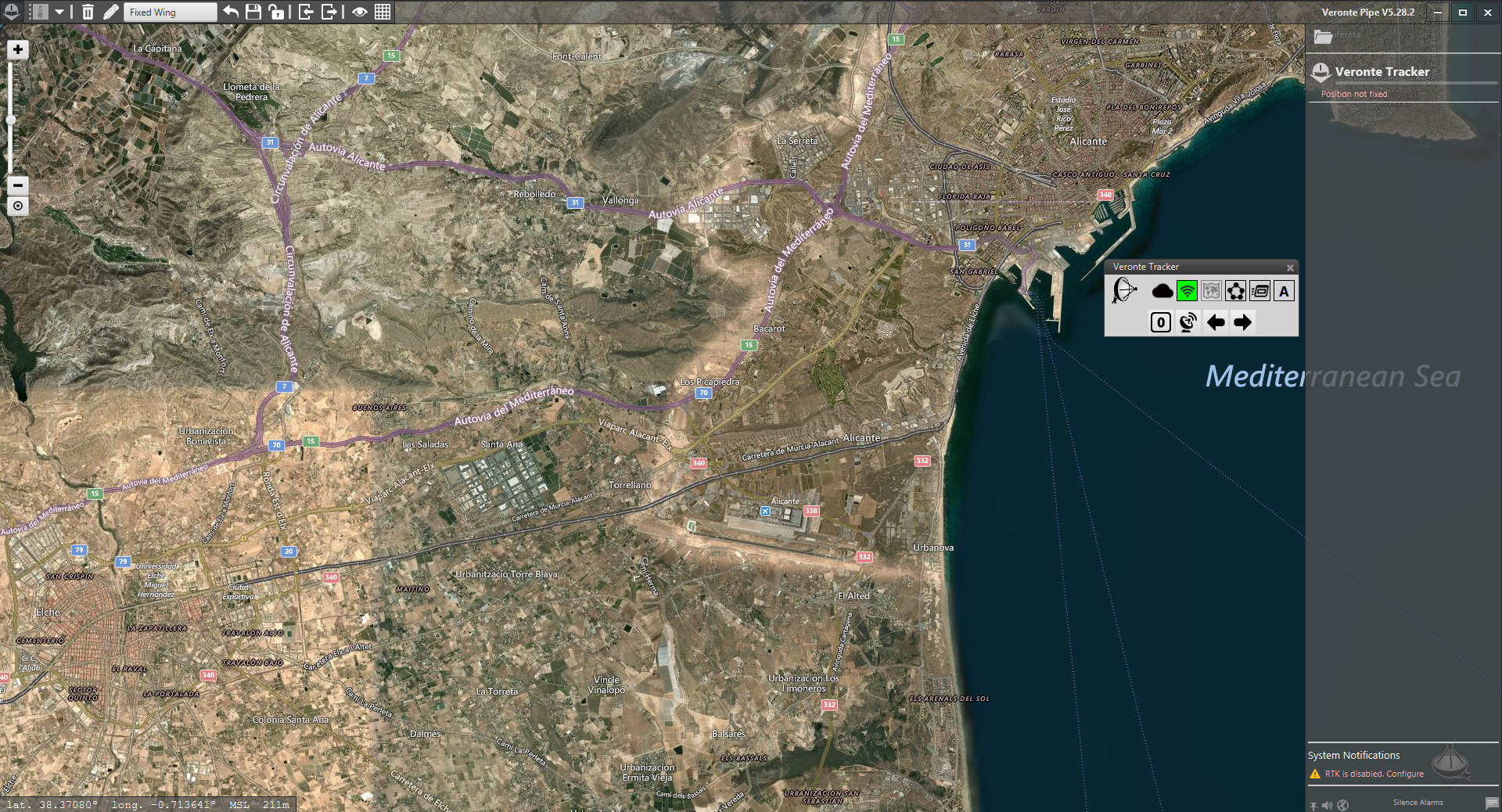

In Veronte Pipe, the position of the aircraft and the tracker should appear in the map once the GPS signal is stablished.
Press the neutral position command (0).
Trim the antenna by pointing North, using the arrow buttons.
Press the antenna button in order to start tracking.
Note
Use the aid of a compass device in order to trim Veronte Tracker. A trimming accuracy of +-5º is enough for a correct operation with Veronte Tracker
Attention
Always check that GPS position for both air and ground segments has been stablished before sending the tracking command
Tilt activation with range¶

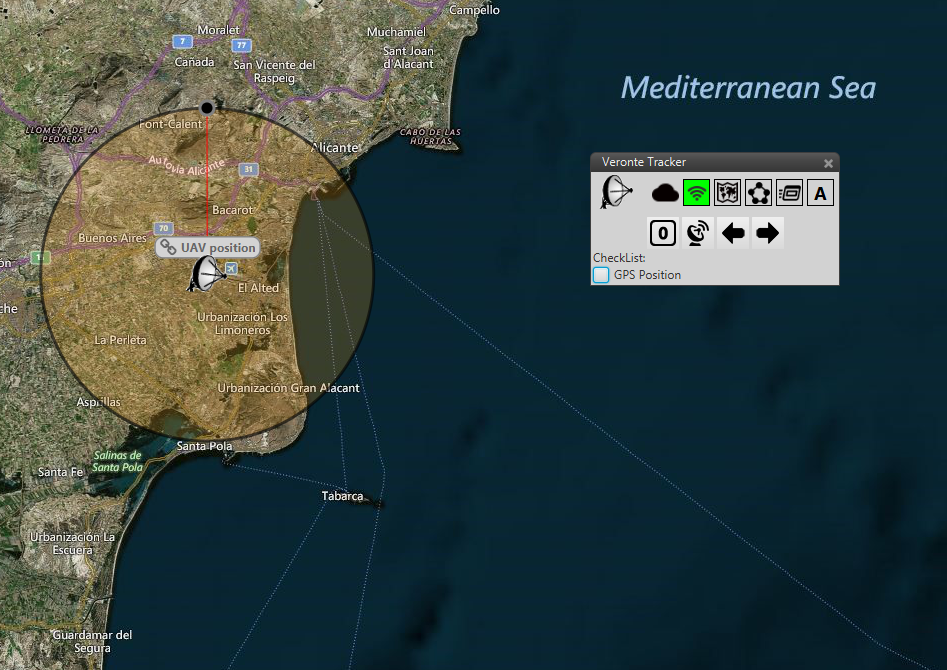

By default, a circular area is attached to the GPS position of Veronte Tracker. Tilting movement of Tracker Antenna is only activated if the target UAV is located outside this area
The radius of the circle can be changed in Veronte Pipe by right clicking on it and setting a value for the radius or simply by dragging with the mouse the circumference.
