3. Operation

../../_images/veronte_ops_panels3.png

Operation toolbar

The Operation toolbar is composed by 3 ‘parts’: Operation panel, Operations and Operation actions. However, in the figure above there is no Operation actions part because there was no Veronte Autopilot 1x connected.

In the figure below, users can see these 3 ‘parts’ when an Autopilot 1x is connected:

../../_images/operation_toolbar.png

Operation toolbar - Autopilot connected

  1. Operation panel: Here the user can customize operation elements related to the operation and carry out some simple calibrations such as calibration of atmosphere, wind, DEM, etc.

  2. Operations: Users shall be able to select an operation other than the one loaded on the autopilot and load it.

  3. Operation actions: These are actions related to when changes are applied to the operation/mission, such as Revert, Save and Upload changes. This ‘part’ is only available when a Veronte 1x Autopilot is connected.

    In addition, when a change is made, the other 2 actions (Revert and Save) appear.

Operation panel

This menu is divided into 2 different functionalities: manage operation elements in the Customize tab, and simple calibrations in the Calibrations tab.

../../_images/operation_panel.png

Operation panel

All parameters included in this panel are explained in detail in the following sections.

Customize

In this part of the menu users can find all the operation elements used during the operation and mission: Operation Variables, Custom Points, Areas (prisms, cylinders and spheres), Patches, Marks, Runways, Spots and Initial position UAV.

../../_images/operation_panel_customize.png

Operation panel - Customize tab

If users wish to link a mark, patch, prism, etc., to one of these variables, it is first necessary to define (rename) them in the UI menu of the 1x PDI Builder software, as described and explained in the corresponding section of the 1x PDI Builder manual, click here to access it.

Operation Variables

Operation Variables are configurable values, postitions and directions that can vary depending on the mission.

Important

Not setting the value of an operation variable may raise errors during the operation.

Examples of Operation Variables can be:

  • Mission duration

  • Cruise speed

  • Flight level

  • Takeoff and landing direction

  • Home point

  • Start of route

Their main advantage is that it is not necessary to access Veronte Autopilot configuration to modify them. In this way, the operator can modify certain parameters without the need of having access to the entire configuration.

../../_images/customize_operation_variables.png

Operation Variables

As explained above, operation elements must be created while building a Veronte Autopilot configuration. So, when a new Operation Variable is created, a new field will appear in the operation variables tab:

../../_images/customize_operation_variables_configuration.png

New Operation Variable

After this, the value of this variable can be defined using this menu. The user simply clicks on the value cell, enters the desired new value and saves the change (save button, this is explained in the Save operation section below). An example is shown below:

../../_images/customize_operation_variables_configuration_example.gif

Operations Variables configuration

Warning

Although it is possible to modify operation elements during the flight, this practice is not recommended.

Whenever changing values during an operation, make sure that no potential risk to flight safety is involved.

Custom Points

A Custom point is an operation element that can be linked to a waypoint of the configured mission.

As explained above, an operation element only appears in this panel when it has been previously defined in the 1x PDI Builder software.

../../_images/customize_custom_point_not_set.png

Custom point

Therefore, as can be seen in the figure above, this Custom point has been defined in the autopilot configuration, but is not yet configured.

To configure it, it is necessary to click on the set icon to link this Custom point to a waypoint of the mission. An example is shown below:

../../_images/customize_custom_point_select.gif

Custom point configuration - Select point

Once, the Custom point is linked to a waypoint, the following options will appear in the operation panel:

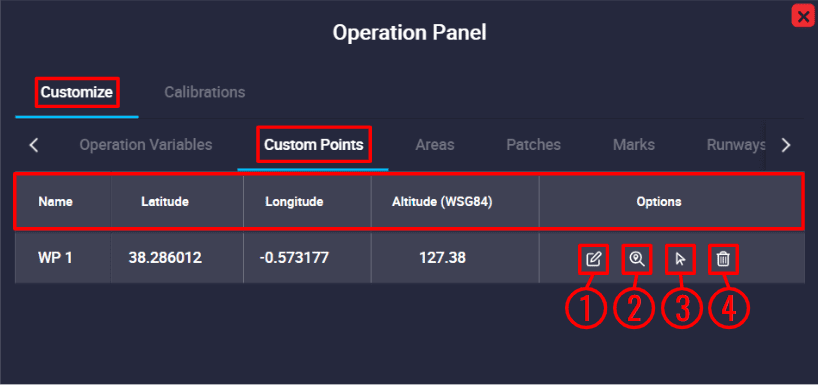

../../_images/customize_custom_point_operation_panel.png

Custom point configuration

  • Name: Name of this Custom point defined in the 1x PDI Builder software.

  • Coordinates: Latitude, longitude and altitude (WGS884) of the selected point.

  • Options: These are configuration options of the Custom point:

    1. Edit options: This option allows the user to manually edit the position of the Custom point. Its configuration is the same as for a waypoint (a detailed explanation of this has been described in the Waypoint - Mission section of this manual).

    2. Search: By clicking here, Veronte Ops will center and zoom in on the area of the map where this Custom point is defined.

    3. Select in map: To link the Custom point to a different waypoint, click here and select it on the map.

    4. Remove reference: The user can remove the Custom point configuration by clicking here.

Moreover, by clicking on the linked waypoint, it will appear with the name of the configured Custom point:

../../_images/customize_custom_point_description.png

Custom point description

Areas

This tab includes prisms, cylinders and spheres.

These operation elements, Prisms, Cylinders and Spheres are detection areas that can be linked to prisms, cylinders or spheres of the configured mission.

../../_images/customize_areas.png

Areas

In the image above, the user can identify that there is a prism already defined and configured, a prism defined but not configured, and that there is no cylinder or sphere either configured or defined.

If the user wants to define cylindrical or spherical areas, this must be done in the 1x PDI Builder software, as described at the beginning of the Customize section. Then, to configure them, the process is the same as described for Custom points.

Once an Area has been defined and configured, the following options are displayed in the operation panel:

../../_images/customize_areas_configuration.png

Are configuration

  • Name: Element identifier, this has been defined in the 1x PDI Builder software.

  • Events: Here is displayed the list of any events that are linked to this element, such as triggers for automatic actions.

  • Options: These are configuration options of the Area:

    1. Search: By clicking here, Veronte Ops will center and zoom in on the area of the map where this Area is defined.

    2. Select in map: To link this operation element to a different area, click here and select it on the map.

    3. Remove reference: The user can remove the Area configuration by clicking here.

In addition, when clicking on the linked area, its description will appear with the name defined by the user and the events linked to it will also appear:

../../_images/customize_area_description.png

Area description

Patches

A Patch is an operation element that can be linked to patches associated with waypoints, segments, arcs or orbits of the configured mission.

This tab has the same options and works exactly the same way as the previous section (Areas section).

../../_images/customize_patches.png

Patches

Moreover, if the event that is linked to the Patch has an associated icon and the element of the mission is the patch of a waypoint, the icon will appear at this waypoint. In addition, when clicking on it, the patch name defined by the user will appear in its description, as well as the events linked to it. An example is shown below:

Note

As this is a patch, the Operation Custom Point is not renamed as in the case of Custom Points, the name of the patch associated to this waypoint is renamed in the description.

../../_images/customize_patches_description.png

Patches - WP description

Marks

A Mark is an operation element that can be linked to a mark (reference placed in a patch) of the configured mission.

The procedure for defining and configuring a mark is the same as described above in the Areas section.

Once a Mark is configured, the following options will appear in the operation panel:

../../_images/customize_marks.png

Marks

  • Name: Element identifier, this has been defined in the 1x PDI Builder software.

  • Events: Here is displayed the list of any events that are linked to this mark, such as triggers for automatic actions.

  • Options: These are configuration options of the Mark:

    1. Search: By clicking here, Veronte Ops will center and zoom in on the area of the map where this Mark is defined.

    2. Edit/Create:

      ../../_images/customize_marks_edit.png

      Marks - Edit

      • Patch type: The user can select different flight guidance phases where the marks will be placed: Approach, Climbing, Route, Taxi, VTol and Rendezvous. Except for Route patches, for the rest of the guidance phase, patches are generated when the user, or an automation, activates them. As the user cannot select these patches, as they cannot be generated initially, this option will automatically create the marking on the selected patch.

      • Patch Selected: Most flight guidance phases have predefined patches with specific names. The user can select where the mark will be placed on those patches. A table summarising the available options is shown below.

      • Type: Right now the only possible option is “Referred to start” of the selected patch.

      • Distance: Distance from the mark to the start of the patch.

      Climbing and Approach guidances are defined as follows:

      ../../_images/customize_marks_edit_approach.png

      Marks - Approach patches

      ../../_images/customize_marks_edit_climbing.png

      Marks - Climbing patches

      Approach

      L0/A1/L2/A3/L4/L5

      Climbing

      A1/L2/A3/L4

      Route

      512 patches

      Taxi

      Taxi 0/Taxi 1

      VTol

      VTol 0/VTol 1/VTol 3

      Rendezvous

      Rendezvous 0/Rendezvous 1/Rendezvous 2

    3. Create mark in map and select: If the mark is not yet created in the mission, by clicking on this option, Veronte Ops will create it at the point on the map where the user clicks.

      In addition, Veronte Ops will automatically link this operation element to this newly created marker.

      Note

      This option also appears although the mark is not yet configured (linked to a created mark).

    4. Select in map: To link this operation element to a different mark, click here and select it on the map.

    5. Remove reference: The user can remove the Mark configuration by clicking here.

Moreover, if the event that is linked to the Mark has an associated icon, the icon will appear on that mark. In addition, when clicking on it, its description will appear with the name defined by the user and the events linked to it will also appear. An example is shown below:

../../_images/customize_marks_description.png

Marks - Icon and description

Runways

Runways are operation elements that can be linked to the runways of the configured mission.

Like all other operation elements, Runways have to be defined in 1x PDI Builder and then configured by selecting a runway from the map.

../../_images/customize_runways.png

Runways

The following configurable options will then appear in the operation panel:

../../_images/customize_runways_configuration.png

Runways configuration

  • Name: Element identifier, this has been defined in the 1x PDI Builder software.

  • Options: These are configuration options of the Runway:

    1. Search: By clicking here, Veronte Ops will center and zoom in on the area of the map where this Runway is defined.

    2. Edit: By clicking here the user will be able to modify the runway settings. A detailed explanation of how to configure it can be found in the Runway - Mission section of this manual.

    3. Configure Alarms: Alarms can be associated to Runways. A detailed explanation of how to configure them can be found in Runway - Mission section of this manual.

    4. Select in map: To link this operation element to a different runway, click here and select it on the map.

    5. Remove reference: The user can remove the Runway configuration by clicking here.

Moreover, by clicking on the linked runway, it will appear with the name of the configured Runway:

../../_images/customize_runways_description.png

Runways description

If the user clicks on the Start, End or Loiter points of the Runway, they are also renamed:

../../_images/customize_runways_points.png

Runways - Start, End and Loiter points

Spots

Spots are operation elements that can be linked to the spots of the configured mission.

They function in the same way as the Runways operation elements:

../../_images/customize_spots.png

Spots configuration

  • Name: Element identifier, this has been defined in the 1x PDI Builder software.

  • Options: These are configuration options of the Spot:

    1. Search: By clicking here, Veronte Ops will center and zoom in on the area of the map where this Spot is defined.

    2. Edit: By clicking here the user will be able to modify the spot settings. A detailed explanation of how to configure it can be found in Spot - Mission section of this manual.

    3. Configure Alarms: Alarms can be associated to Spots. A detailed explanation of how to configure them can be found in Spot - Mission section of this manual.

    4. Select in map: To link this operation element to a different spot, click here and select it on the map.

    5. Remove reference: The user can remove the Spot configuration by clicking here.

Moreover, by clicking on the linked spot, it will appear with the name of the configured Spot:

../../_images/customize_spots_description.png

Spots description

If the user clicks on the spot loiter point, it is also renamed:

../../_images/customize_spots_loiter.png

Spots - Loiter point

Initial position UAV

It is a marker indicating the initial position of the UAV.

In addition, users can find and center this marker on the map, as well as show/hide it.

../../_images/customize_initial_position_uav.png

Initial position UAV

It is configured in the same way as waypoints. For a detailed explanatin of this, please refer to the Waypoint section of this manual.

After setting the position, it is necessary to click Accept and then Save and Upload the operation.

In the figure below, the marker is “shown” (as the hidden button appears):

../../_images/customize_initial_position_uav_marker.png

Initial position UAV - Marker in map

Calibrations

In this tab, the user can carry out simple calibrations during a standard operation. This way, there is no need of modifying the configuration or building a specific automation.

Note

Some of the following calibrations can also be triggered automatically using Automations.

../../_images/calibrations.png

Operation panel - Calibrations tab

Note

These calibrations will never modify the autopilot’s current configuration: the changes are volatile, and will disappear once the system is rebooted.

Warning

To send any of these calibrations, it is necessary to click on the ‘Send’ button.

Calibrate Atmosphere

Calibration for MSL calculation with barometric pressure.

../../_images/calibrations_atmosphere.png

Calibrate Atmopshere

  • Type: QFE and QNH options are available.

  • Time to acquire mean: Specified time during which the static pressure is read from the static pressure sensor.

  • Temperature: Outside air temperature.

  • Altitude (MSL): Actual MSL altitude.

  • Take AP’s pressure: If enabled, static pressure will be selected from the autopilot measurement, otherwise users will have to enter it manually.

Wind Calibration

This command allows to enter initial values for wind state and start wind estimation algorithm.

../../_images/calibrations_wind.png

Calibrate Wind

  • Enable Wind Estimation.

  • Init: By enabling it, an initial wind vector can be set to a faster convergence of the estimation.

  • Wind Speed: Module of the initial wind speed.

  • Direction: Argument/Direction of the initial wind speed.

Advanced Calibrations

The following are the advanced calibrations that can be performed by the user during operation:

../../_images/calibrations_advanced.png

Advanced Calibrations

  • Calibrate Digital Elevation Model (DEM)

    This calibration calculates the offset that the SRTM of the current point should have so that the estimated AGL results in the desired AGL (the one indicated in the calibration).

    Warning

    • This offset is only valid for the point where the DEM has been calibrated.

    • Always perform this action on the ground, unless an accurate estimation of current AGL is available.

    ../../_images/calibrations_advanced_dem.png

    Advanced Calibrations - Calibrate DEM

  • Trim stick for Arcade Modes

    This command calibrates the current stick for arcade commands.

    ../../_images/calibrations_advanced_trim.png

    Advanced Calibrations - Trim stick

  • Calibrate Yaw

    Allows to manually modify the Yaw Navigation state.

    Warning

    If there is any Yaw sensor active (i.e. Magnetometer), this command will not work since it will be automatically overrided.

    ../../_images/calibrations_advanced_yaw.png

    Advanced Calibrations - Calibrate Yaw

  • Calibrate Position

    Allows to manually modify the Position Navigation state.

    The configurable parameters of the position calibration are the same as for configuring the position of a waypoint. So they have already been described in detail earlier in the Waypoint - Mission section of this manual.

    Warning

    If there is any absolute positioning sensor active (i.e. GNSS), this command will not work since it will be automatically overrided.

    ../../_images/calibrations_advanced_position.png

    Advanced Calibrations - Calibrate Position

Operations

By clicking here, a list of all operations loaded in Veronte Ops will appear. The current operation is the one that is selected, the one shown in blue.

../../_images/operations.png

Operations

The following options are available for each operation:

../../_images/operation_options.png

Operation options

  • Rename: The user can rename the operation as desired.

  • Export: The current operation can be exported, the available formats are: ZIP, KML and GEOJSON.

  • Remove: Clicking here will delete the selected operation.

    Note

    It is possible to delete several or all operations at once from the Operation manager menu of the Status bar, click here for more infromation.

Adding an operation

It is posible to create a new operation by simply clicking on ‘Add Operation’.

The user can choose between adding an empty operation or importing one from the laptop, which has been previously exported. The available formats for importing an operation are the same as for exporting it: ZIP, KML and GEOJSON.

../../_images/operation_creation.png

Operation creation

Warning

If users export an operation from Veronte Ops v6.8 and attempt to import it into Veronte Ops v6.12, Veronte Ops will not be able to import it as the operations are not compatible between versions and the following warning message will be displayed:

../../_images/operation_import_warning.png

Importing operation error

Therefore, if users want to migrate an operation, they will have to upload this operation to a Veronte Autopilot 1x through the 1x PDI Builder software in version 6.12 and the migration from 6.8 to 6.12 will be performed automatically.

Note

When a configuration is saved in the 1x PDI Builder software, the following message will appear to inform the user that there is a new operation loaded in the Autopilot 1x:

../../_images/operation_overwrite.png

Operation overwrite/new

  • If the user does not select anything, after 10 seconds this message will disappear and a new operation will be created.

  • If the user selects NO, a new operation will also be created, as described in the message.

  • If the user selects YES, no new operation will be created and the changes saved in the 1x PDI Builder software will be applied to the current operation, i.e. the current operation will be overwritten.

Operation actions

revert Revert Operation changes

  • When a change is made, it is possible to revert it by pressing this button. This is only possible if the changes have not yet been saved.

save Save Operation

  • To apply any change it is necessary to save it by pressing this button.

upload Upload to(Platform name)

  • To update the operation loaded on the autopilot with the new saved changes, click on this button.

  • If there is no change to upload to the operation configuration, the following message will appear:

    ../../_images/upload_message.png

    Nothing to Save in ‘…’
