Can Configuration

A Controller Area Network (CAN Bus) is a robust vehicle bus standard widely used in the aviation sector. Veronte is fitted with two CAN buses that can be configured independently.

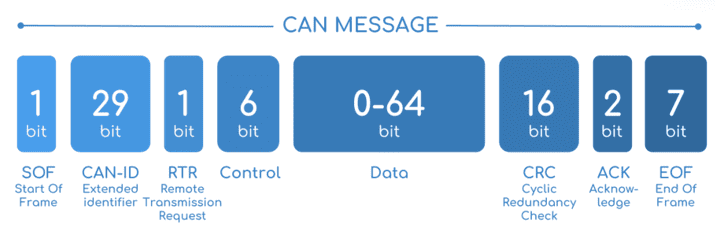

The structure of a CAN message can be seen in the following image:

Veronte Configuration - CAN – Structure

CAN message structure

Only the ID is introduced in the system, the rest of the message layout is already coded. The data field is the one build by the user to send, and parsed when received.

The baud rate of both CAN buses can be configured in Setup - Connections - CAN.
