Technical

Part list

The system consist of a multiple components listed below.

  • PAN-TILT Unit

  • PCS connection cable

  • Extendible mast up to 3m

  • Rugged transport box for motion platform

  • Bag for tripod

Features

  • Ready for operation with Veronte PCS.

  • Real time tracking.

  • Data, Telemetry and Video Link Communication.

  • Tripod or Telescopic Mast Mount.

  • Directional and omnidirectional antenna combination.

  • Compatible with Veronte MCS or third party computers.

  • Easy to install.

  • 360º free rotation.

  • Easy maintenance.

  • Robust and reliable construction.

Warning

T28 needs Veronte PCS to operate.

Mechanical Specifications

Pan-tilt unit Weight

17 kg max (without antennas and Veronte PCS)

Mast Weight

21 kg

Operating temperature

-20 to 60°C

Environmental protection

IP54

PAN-TILT Transport case

Rugged plastic case, quad track wheels, pressure purge valve, side handles and carry handle

Tripod Transport bag

High quality transport bag

Electrical Specifications

T28 DC input

24 VDC

PCS power

80 to 130 W (depending on mounted antennas)

Pheripheral I/O Ports

1x USB, 2x CAN ports, Ethernet, 16x PWM, PPM, 4x ADCs and 1x I2C (From Veronte PCS)

Dimensions

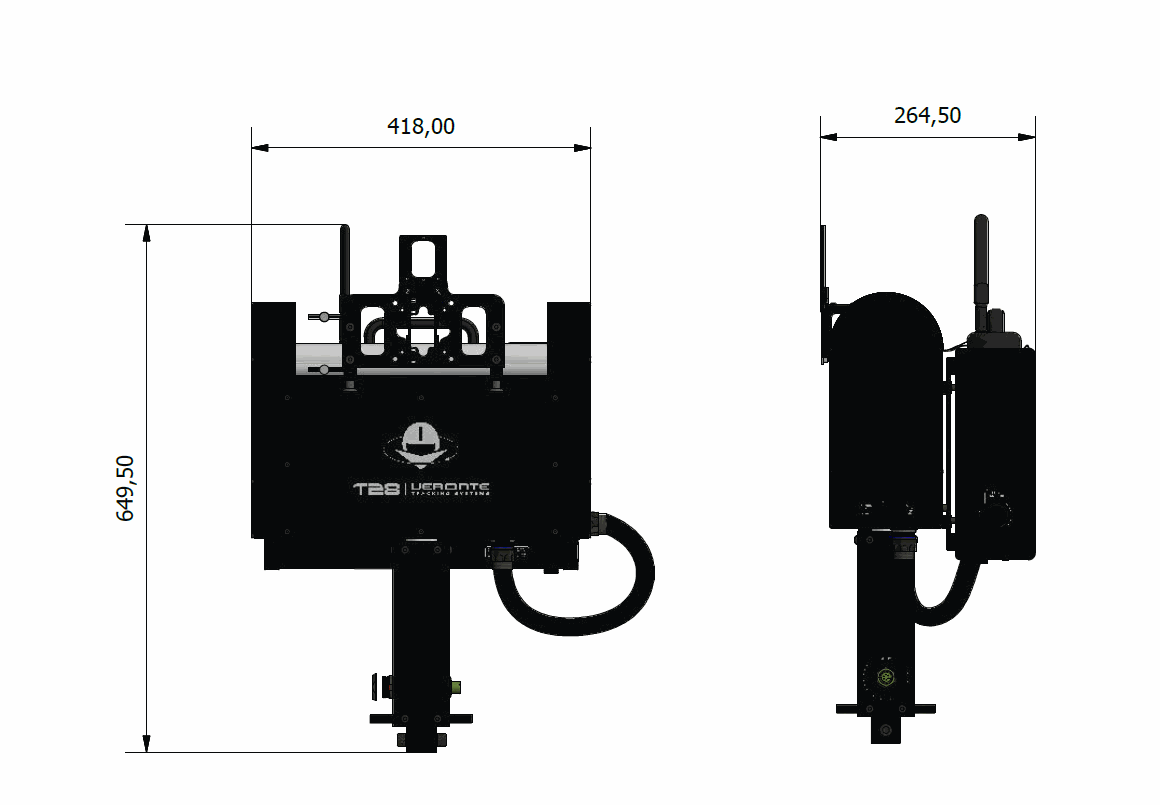

Below you can find a dimensions drawing of T28.

../_images/TrackerInterfaceDimension.png

Veronte T28 dimensions

T28 is supplied together with a telescopic foldable mast that can be extended up to 3.8m. Maximum and the minimum dimensions of the system are defined as follows.

../_images/SystemDimensions.png

System Dimensions

Antenna Kits

Embention offers different antenna kits for T28 and PCS. They are available with different configurations in order to fit all operational requirements. To read any antenna datasheet, click on your Datasheet below. To know how to install any kit, read the section Tracker Antenna Kit Installation.

Antenna kit

Part number

Directional antenna

Omnidirectional antenna

Compatible Datalink kits

Kit A

(2.4 GHz Parabolic) 1.0

P005461

Parabolic HG2427G

icon Datasheet

HGV2458-05U

icon Datasheet

  • Datalink Kit A - Veronte SDL

  • Datalink Kit H - MicroHard

Kit B

(900 MHz Yagi) 1.0

P005459

Yagi HG914YE-NF-BLK

icon Datasheet

HG903UP-NF

icon Datasheet

  • Datalink Kit A - Veronte SDL

  • Datalink Kit B - Veronte SDL

  • Datalink Kit H - MicroHard

  • Datalink Kit I - MicroHard

Kit C

(400 MHz Yagi) 1.0

P005460

ZDADJ450-12YG

icon Datasheet

ANT-433-CW-QW

icon Datasheet

  • Datalink Kit A - Veronte SDL

  • Datalink Kit C - Veronte SDL

  • Datalink Kit H - MicroHard

Kit D

(Wideband 2x Parabolic) 1.0

P008035

Parabolic TS242601

icon Datasheet

HGV2458-05U

icon Datasheet

  • Datalink Kit F - Silvus

  • Datalink Kit G - Silvus

Kit F

(DT 2.4 GHz Parabolic) 1.0

P008965

Parabolic HG2427G

icon Datasheet

HGV2458-05U

icon Datasheet

  • Datalink Kit D - DTC

Interfaces

../_images/TrackerPartIdentification1.png

Veronte T28 Interfaces - Parts identification

../_images/TrackerPartIdentification2.png

Veronte T28 Interfaces - Parts identification

ID

Connector

Mating connector

A

Antenna connection

N-Type

B

To Veronte PCS LOS connector

C

Antenna connection

D

T28 harness connection

Lemo with 68 pins

Embention reference: P007922

E

Warning

Use T28 harness connection.

T28 can only be powered through the Power Connector.
