Antenna Kit G - Wideband 2x Parabolic 2x Omni

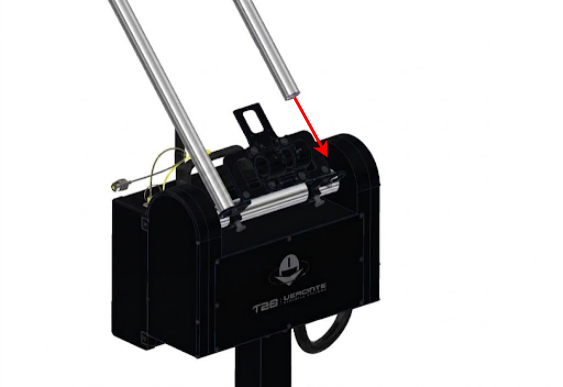

  1. Mount the omnidirectional antenna. Please refer to the Omnidirectional Antenna section.

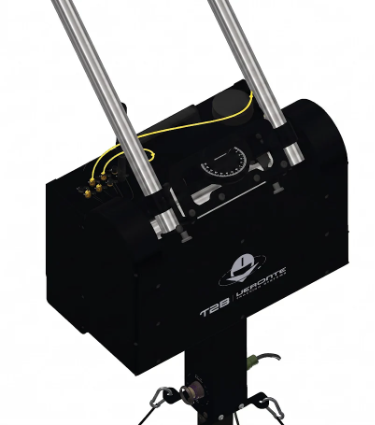

  2. Once mounted the first omnidirectional antenna, repeat the process to mount the second one.

  1. Assemble the support to the center of the horizontal tube. After that, screw two set screws M4 x 6 mm, so they stand on both grooves.

Note

The set screws on grooves prevent the tube from moving inside the support.

../imgs/pole_support.png
  1. Screw the tube with its corresponding support and four screws M8 x 16 mm.
../imgs/screw_tube.png
  1. Screw slightly the three set screws M3 x 6 mm on the top mount of the antenna. They must not traverse the mount.
../imgs/place_screws.png
  1. Attach the antenna to both mounts with knobs.
../imgs/up_down_mounts.png
  1. Slide the tube through the mounts until the three screws (marked with yellow) stand over the three grooves (marked with blue).
../imgs/attach_antenna.png
  1. Screw both knobs into the mount parts.
../imgs/screw_mount.png

Note

The set screws on grooves prevent the mount from moving around the tube.

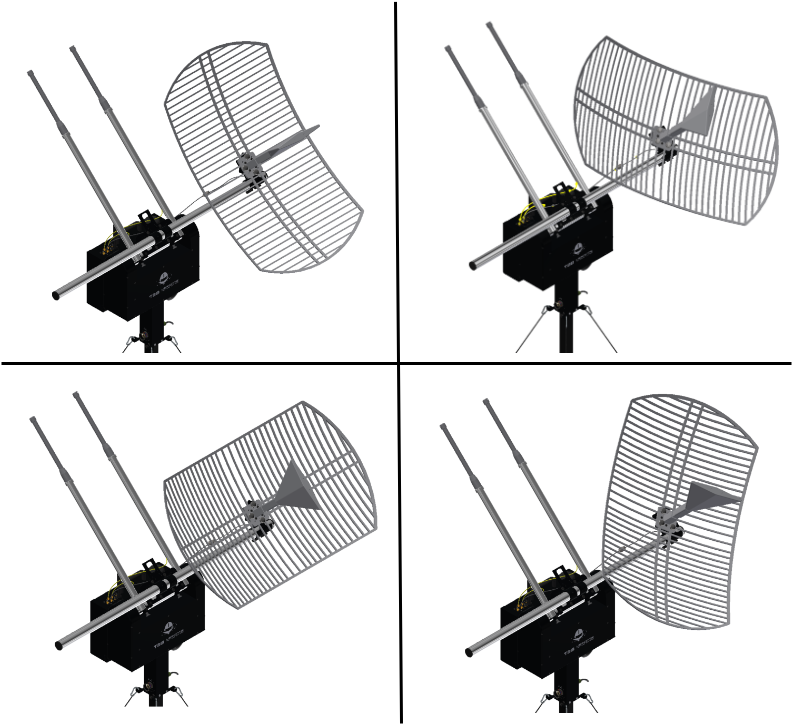

Both antennas can be placed with different angles depending on the polarity direction. This direction is indicated by an arrow on the antenna.

../imgs/antenna_angles.png
  1. Tighten the three set screws previously placed.

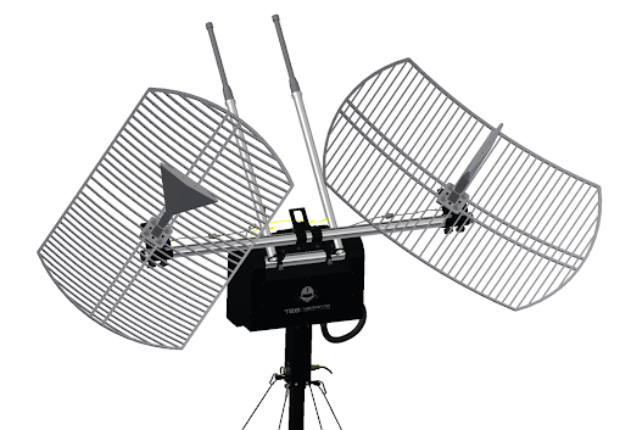

  2. Repeat the mounting process with the other antenna on the opposite side of the tube.
../imgs/omni_2_parabolic_2.png
  1. Connect the omnidirectional antennas to the SMA ports RF4 and RF5 and the parabolic antennas to RF2 and RF3.
../imgs/rf_connectors.png
