Simplified Cooling Circuit Design

This subsection explains how to size a specific layout of cooling design, so the user does not have to calculate any parameters.

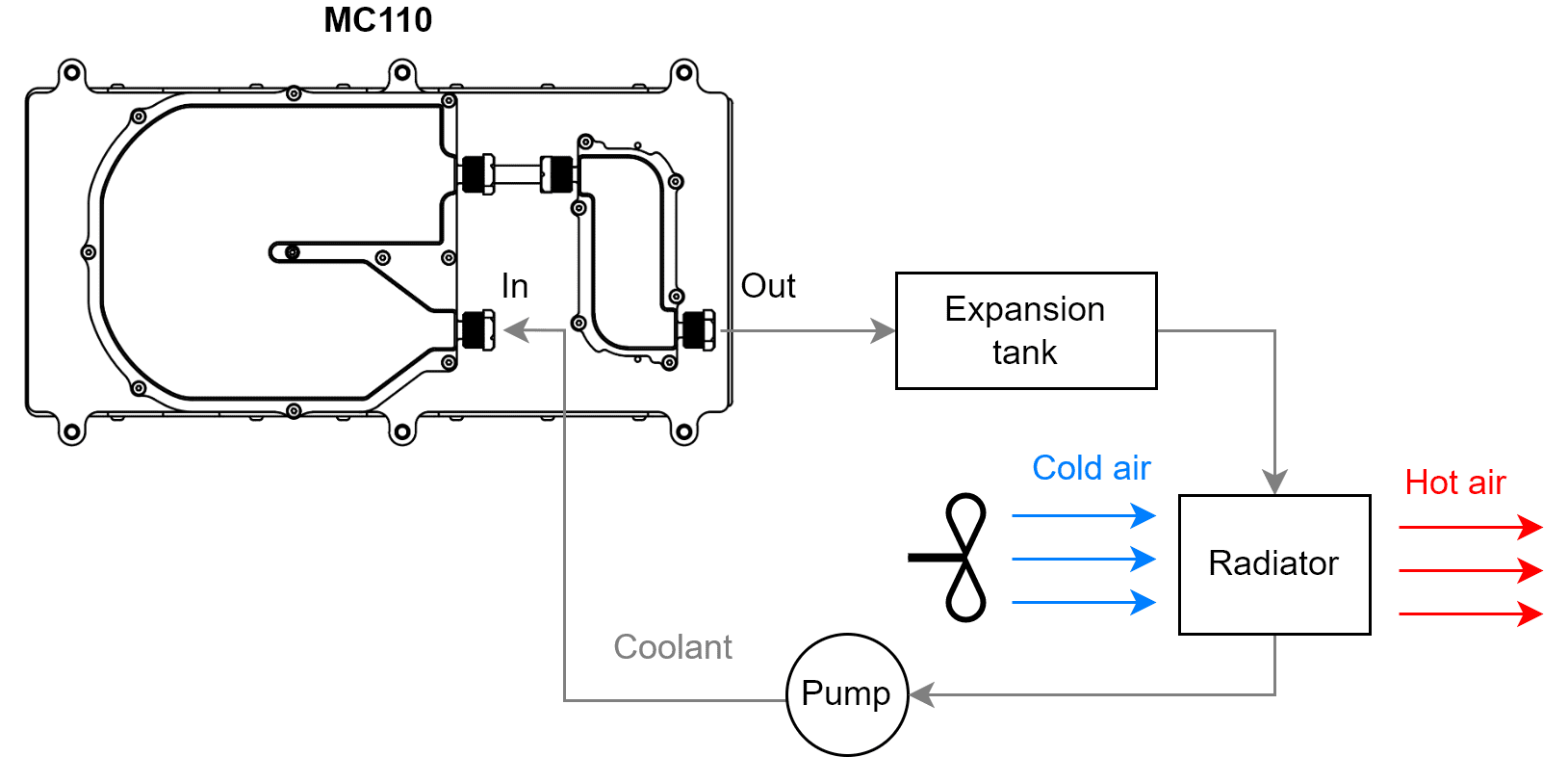

This layout is intended for one single MC110. In case of desiring to use a different layout or to refrigerate multiple controllers with a single circuit, read the Advanced Cooling Circuit Design.

Each cooling element must accomplish the following requirements:

• Pump

  • Flow rate: 6 l/min.
  • Minimum pressure: 0.5 bar.
  • Activity: always on (while MC110 is on).

• Pipes connected to cold plate

  • Water-glicol resistant

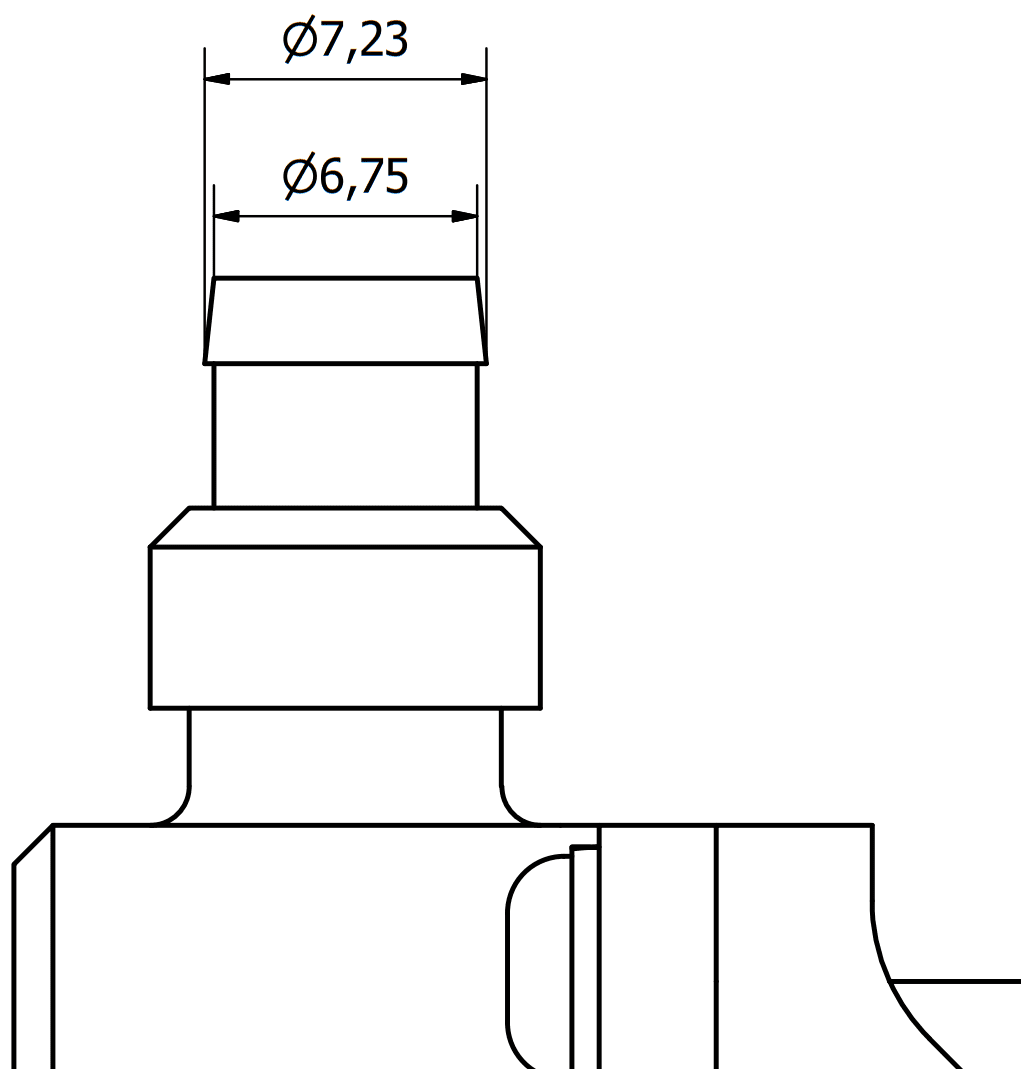

  • Able to join with the following ports:



  Tip

  For cold plate connections, it is recommended to use fluoropolymer tubing with 8 mm of outside diameter and 6 mm of internal diameter.

• Coolant

  • Mixture water-glycol at 50 %, in order to have a freezing temperature below operating conditions.

• Radiator

  Radiator thermal conductivity (which is related to size) depends on motor power, switching frequency and battery voltage.

  Depending on each situation, the following tables show the minimum heat transfer of the required radiator.

Heat transfer for 10 kHz switching frequency (W/ºC)
Motor power (kW)	Battery voltage
	800 V	550 V	100 V
15	50	50	150
30	100	100	*
45	100	150	*
60	150	150	*
75	150	200	*
95	200	200	*
110	200	200	*

Heat transfer for 16 kHz switching frequency (W/ºC)
Motor power (kW)	Battery voltage
	800 V	550 V	100 V
15	50	50	150
30	100	100	*
45	150	150	*
60	150	150	*
75	200	200	*
95	200	200	*
110	250	250	*

Heat transfer for 22 kHz switching frequency (W/ºC)
Motor power (kW)	Battery voltage
	800 V	550 V	100 V
15	100	100	150
30	100	150	*
45	150	150	*
60	200	200	*
75	200	200	*
95	250	*	*
110	*	*	*
