Technical

Features

  • Communications

    • 2x Isolated CAN buses

    • 1x ARINC 429 output

    • 5x ARINC 429 inputs

    • 1x RS485 port

    • 2X RS232 ports

    • 1x I2C port

    • Over CAN or RS232 firmware update

  • Electrical

    • Redundant power supply input

    • Reverse polarity protection

    • ESD protection

    • Transient protection

  • Signals

    • 8x 5V PWM

    • 9x 3.3V GPIO convertible to PWM

    • 4x 3.3V and 5V ECAPs

    • 2x 0V to 3.3V analog inputs

    • 2x 0V to 5V analog inputs

    • 2x 0V to 12V analog inputs

    • 2x 0V to 36V analog inputs

Mechanical Specifications

Weight

117 g

Operating temperature

-40 to 60ºC

Storage temperature

-55 to 85ºC

Environmental protection

IP68

Enclosure material

Anodized-Aluminium 6061-T6

Fixation

4 x M3 screws

Dimensions

CEX is provided using an anodized-aluminium enclosure with enhanced EMI shielding.

There are no navigation sensors built into the CEX, which means there are no restrictions on vibration isolation, location or orientation of the CEX.

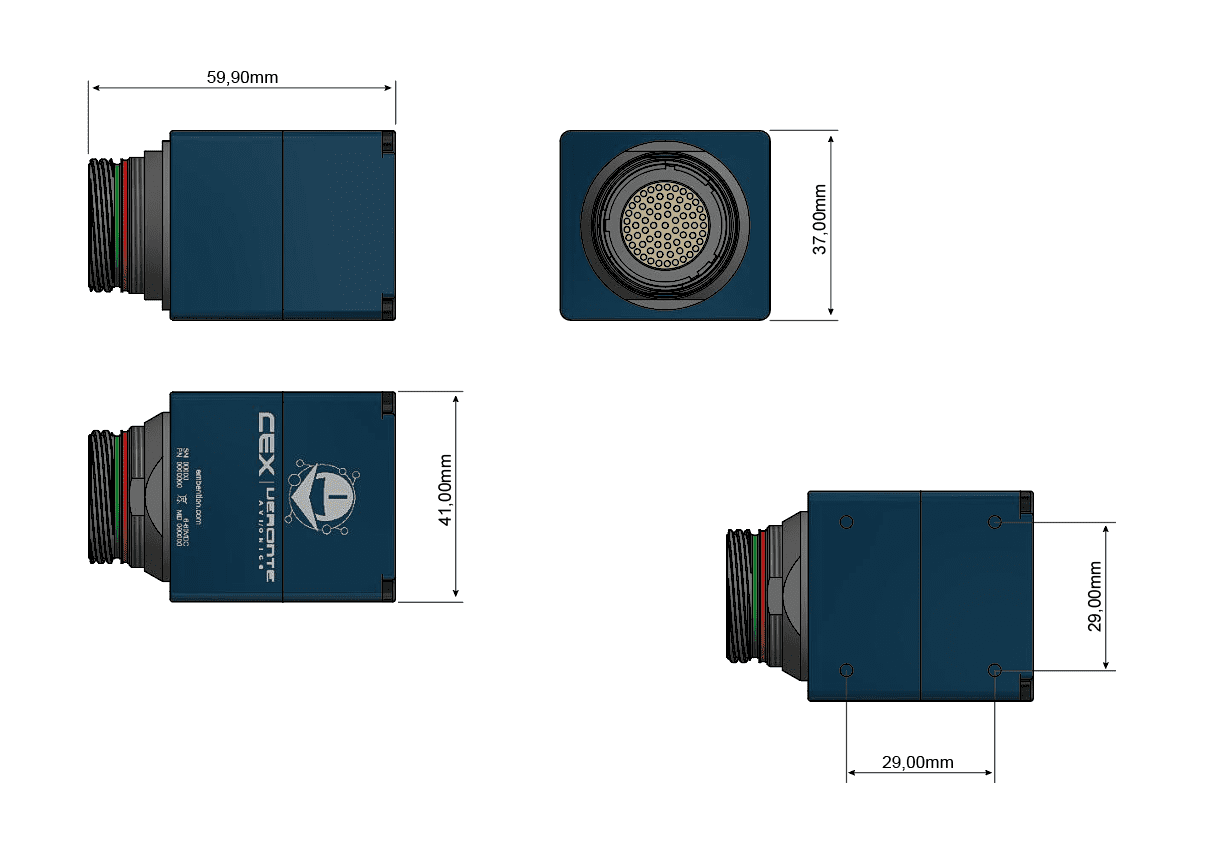

The following figure shows the dimensions of the enclosure. The mounting holes of the enclosure are 4 mm deep M3 threads.

../_images/dimensions_cex.png

CEX dimensions (mm)

Electrical Specifications

Power Supply

DC input

6.5V to 60 V

Power Consumption

3.5W

I/O Specifications

Input voltage/current

  • Power input: 6.5V to 60V (DC)

  • Two different input voltages possible

CAN

  • Complies with CAN Bus 2.0A and 2.0B Standards

  • Opto-Isolated (4kV)

  • Speed up to 1Mbps

RS-232

  • Meets the requirements from TIA/EIA-232-F and ITU v.28 standards

  • Speed up to 112.5 KHz

RS-485

  • Voltage level from -7V to 12V

  • Meets the requirements from ANSI TIA/EIA-485-A

  • RS-422 compatible

  • Speed up to 112.5 KHz

ARINC 429

  • Compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection

  • Voltage level from -5V to 5V

I2C

  • 3.3V Signals up to 400KHz

3.3V Output

  • 100 mA fuse protected

5V Output

  • 100 mA fuse protected

PWM Output

  • Voltage: 5V

  • Current I (oh): 22mA / I (ol): -22mA

  • Micro Edge Positioning (MEP) step size = 150ps

Digital Inputs (ECAP)

  • Maximum voltage: 5V

  • Maximum input current: 2.5mA

  • Sampling rate: up to 1us

Digital Input/Output (GPIO)

  • Voltage: 3.3V

  • Current I (oh): 1.6mA and I (ol) = -1.6mA

Analog signals

  • Input impedance: 10GOhm

  • Resolution:

    • 0-3.3V pins: 0.00080V

    • 0-5V pins: 0.0012V

    • 0-12V pins: 0.0029V

    • 0-36V pins: 0.0087V

Interfaces

CEX only requires one interface connection.

CEX Connector

Mating Connector

Connector HEH.LM.368.XLNP

Mating connector: Veronte Connector Green 68P (FGH.LM.368.XLCT) (Embention reference P005653)

Mating harnesses are available on demand:

  • Veronte Harness Green 68P (Embention reference P001623)

  • Veronte Avionics: Dev Harness CEX 2.0 (Embention reference P006140)

Note

Please contact sales@embention.com for more information on the different harnesses.
