Connection Examples

Ground Stations

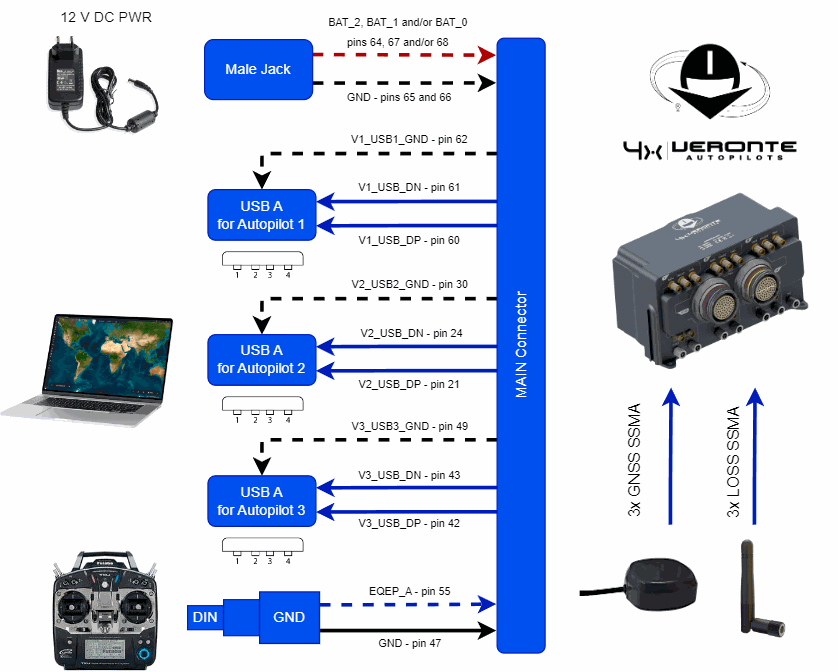

Basic Autopilot 4x Ground Station

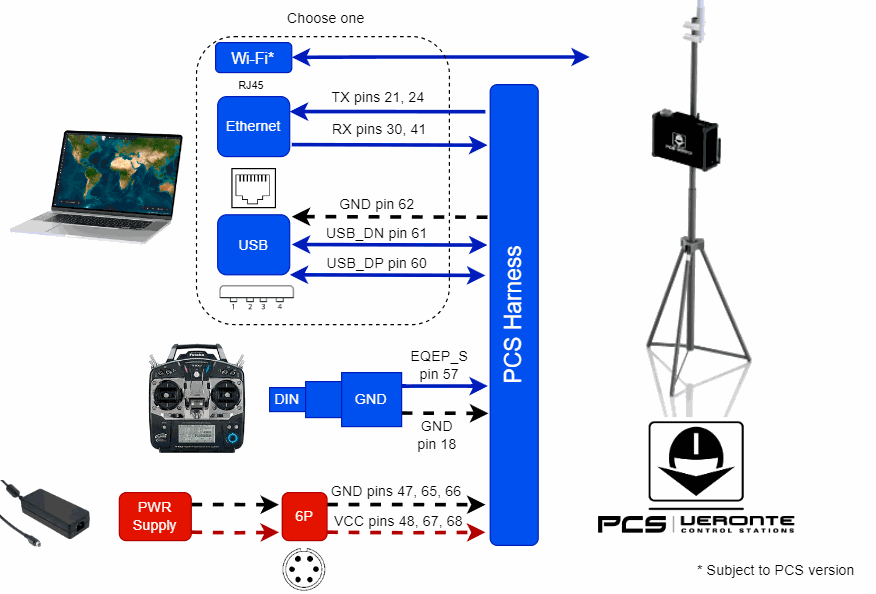

Autopilot 4x PCS Ground Station

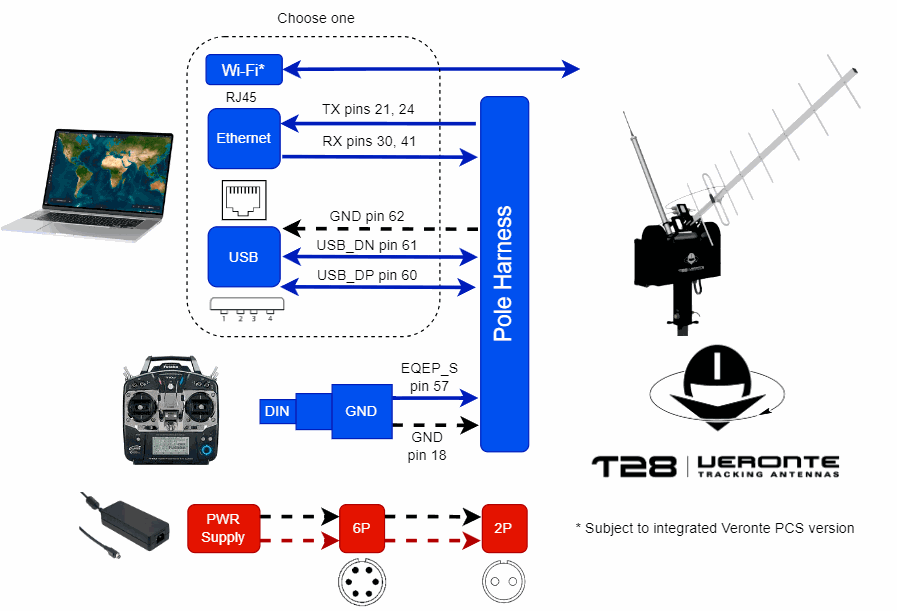

Autopilot 4x Tracker Ground Station

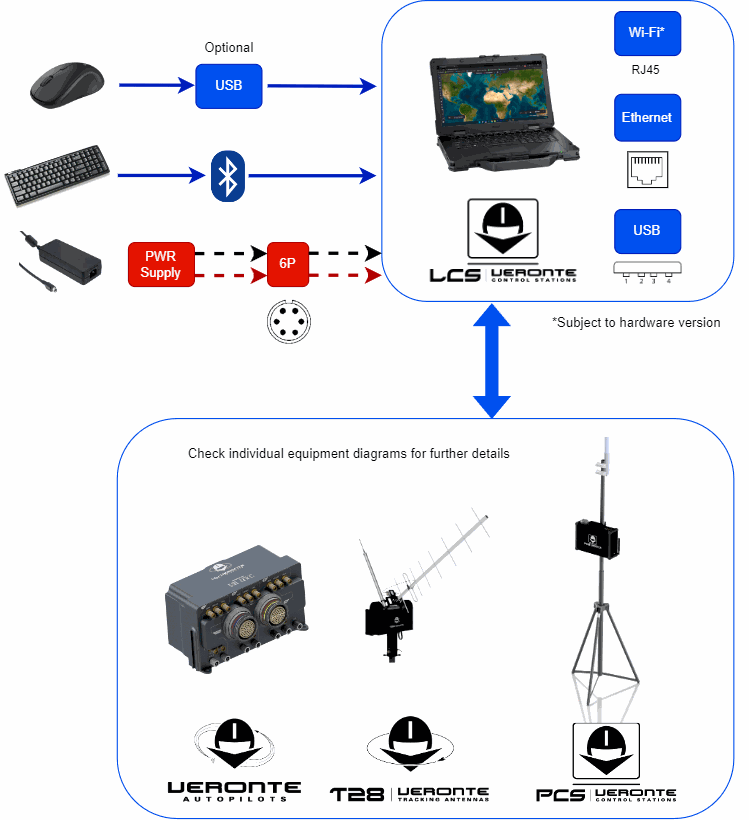

Autopilot 4x LCS Ground Station

Warning

Veronte Autopilot 4x equipment harnesses have specific pin layouts. Only use their own matting connectors, do NOT mix harnesses: misuse may lead to destruction.

Aircrafts

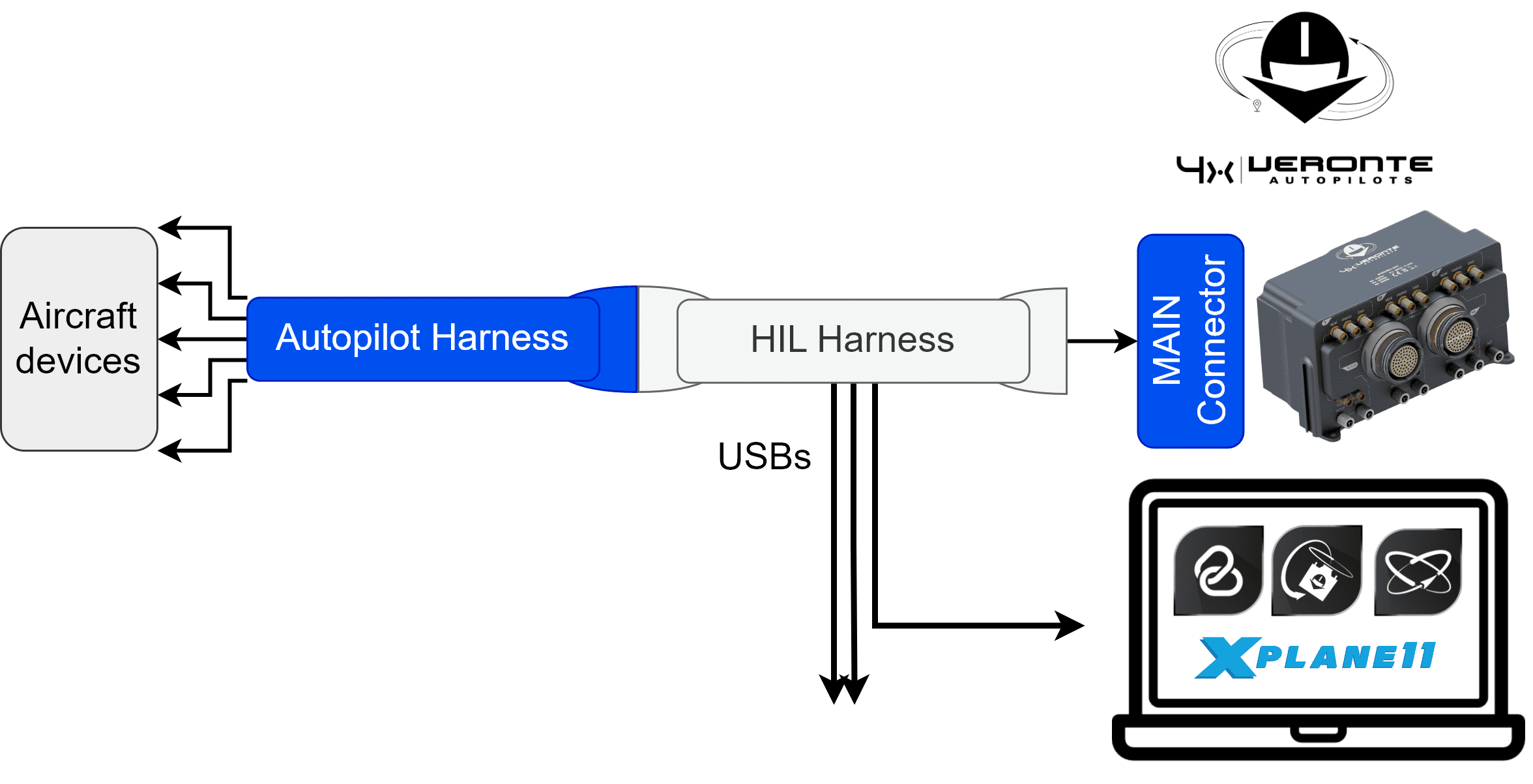

HIL Harness

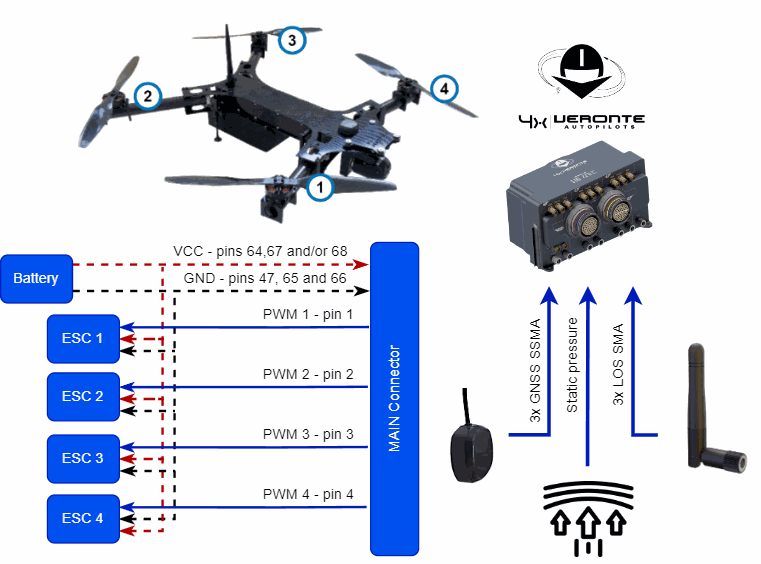

Multicopter

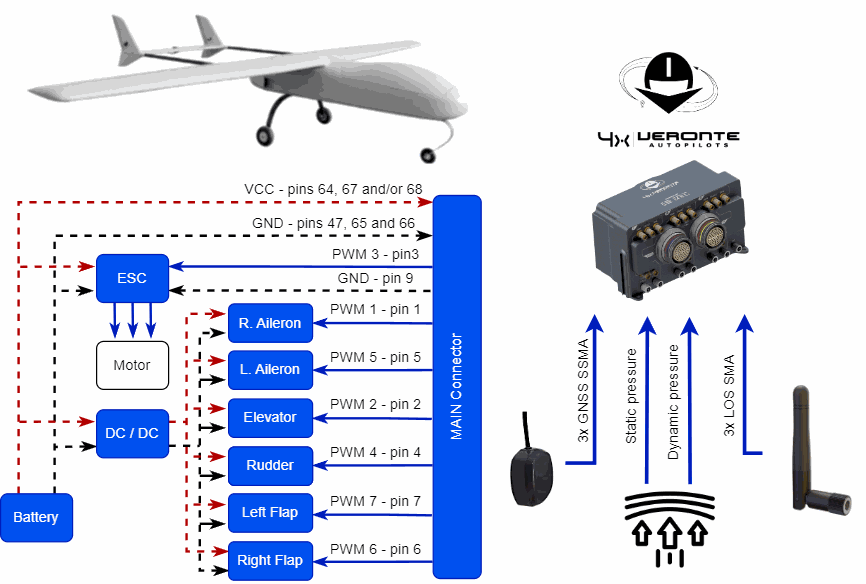

Fixed Wing Airplane

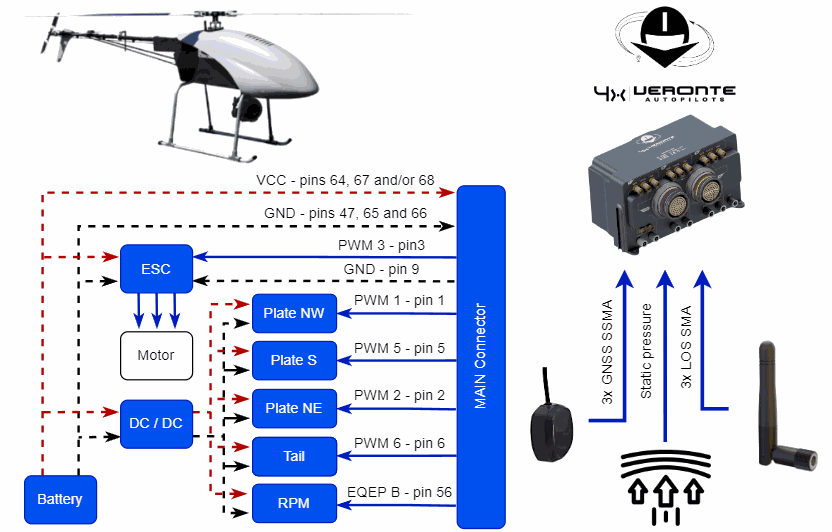

Helicopter
