IMUs & Compass

IMUs

Vectornav VN-300

../../_images/vectornav_vn_300.png

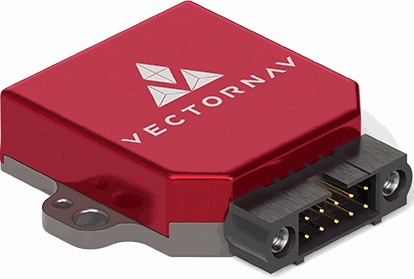

Vectornav VN-300

Vectornav VN-300 is an external IMU that can be connected via RS-232 (serial interface) to Veronte Autopilot 1x.

../../_images/vectornav_vn_300_diagram.png

Vectornav VN-300 - Autopilot 1x wiring diagram

Important

Note that it must be connected to an external power supply, sharing signal ground with Autopilot 1x.

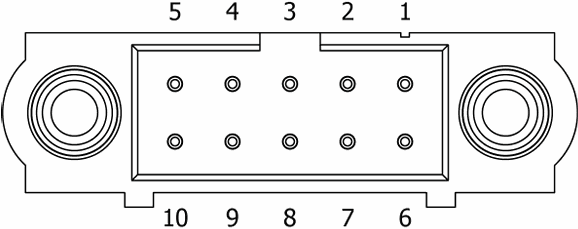

../../_images/vectornav_vn_300_pinout.png

Vectornav VN-300 connector pinout

../../_images/pinout_harness.png

Autopilot 1x harness pinout

Autopilot 1x harness

Vectornav VN-300 connector

PIN

Signal

Color code

PIN

Signal

19

RS 232 TX

White-Pink

1

RX1

20

RS 232 RX

Pink-Brown

2

TX1

21

GND

White-Blue

5

GND

Warning

Remember!! In Autopilot 1x, all GND pins are common. Note that pin 54 is not a common GND pin.

Once the IMU is connected, the user must proceed to its software integration with Veronte Autopilot 1x by referring to the Vectornav VN-300 - Integration examples of the 1x PDI Builder user manual.

Magnetometers

Magnetometer Honeywell HMR2300

../../_images/magnetometer_hmr2300.png

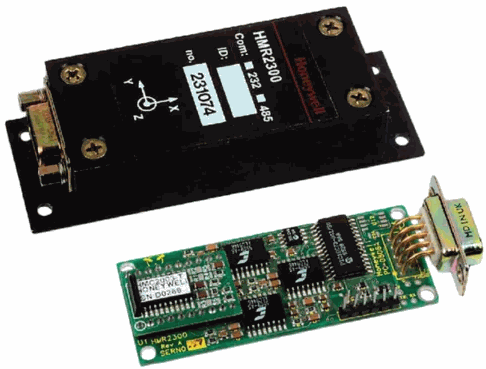

Magnetometer Honeywell HMR2300

Magnetometer Honeywell HMR2300 is an external magnetometer that can be connected to Veronte Autopilot 1x via RS232 or RS485 (serial interfaces).

../../_images/db9_connector.png

Magnetometer Honeywell HMR2300 connector pinout

../../_images/pinout_harness.png

Autopilot 1x harness pinout

Connections via RS232 and RS485 interfaces are explained separately.

RS232

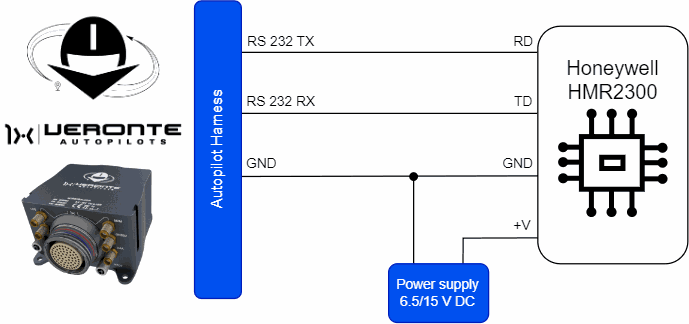

../../_images/magnetometer_hmr2300_diagram_232.png

Magnetometer Honeywell HMR2300 (RS232) - Autopilot 1x wiring diagram

For proper operation via RS232, the connection between Magnetometer Honeywell HMR2300 and Autopilot 1x pins should be like this:

Autopilot 1x harness

Magnetometer Honeywell HMR2300 connector

PIN

Signal

Color code

PIN

Signal

19

RS 232 TX

White-Pink

3

RD

20

RS 232 RX

Pink-Brown

2

TD

21

GND

White-Blue

5

GND

Warning

Remember!! In Autopilot 1x, all GND pins are common. Note that pin 54 is not a common GND pin.

Once the Magnetometer Honeywell HMR2300 is connected, the user must proceed to its software installation with Veronte Autopilot 1x by referring to the Magnetometer Honeywell HMR2300 (RS232) - Integration examples of the 1x PDI Builder user manual.

RS485

../../_images/magnetometer_hmr2300_diagram_485.png

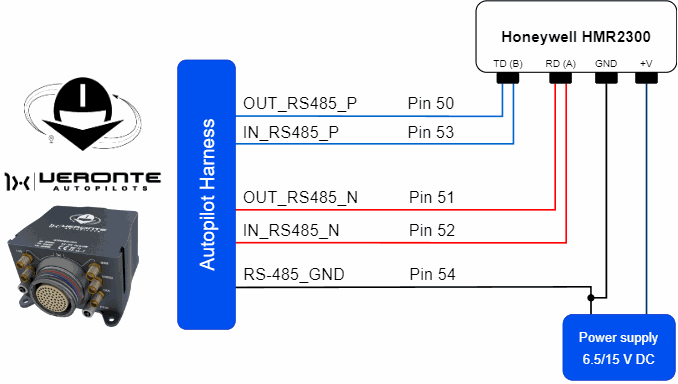

Magnetometer Honeywell HMR2300 (RS485) - Autopilot 1x wiring diagram

For proper operation via RS485, the connection between Magnetometer Honeywell HMR2300 and Autopilot 1x pins should be like this:

Autopilot 1x harness

Magnetometer Honeywell HMR2300 connector

PIN

Signal

Color code

PIN

Signal

50

OUT_RS485_P

Pink-Brown

2

TD (B)

Transmit Data, RS-485 (B+)

53

IN_RS485_P

White-Red

51

OUT_RS485_N

White-Blue

3

RD (A)

Receive Data, RS-485 (A-)

52

IN_RS485_N

Brown-Blue

54

OUT_GND

Brown-Red

5

GND

Warning

Note that this pin 54 is not a common GND pin.

Note

If users encounter any problems during wiring, please check the Half-duplex servo does not respond - Troubleshooting section of this manual.

Once the Magnetometer Honeywell HMR2300 is connected, the user must proceed to its software installation with Veronte Autopilot 1x by referring to the Magnetometer Honeywell HMR2300 (RS485) - Integration examples of the 1x PDI Builder user manual.

MEX as Magnetometer Honeywell HMR2300

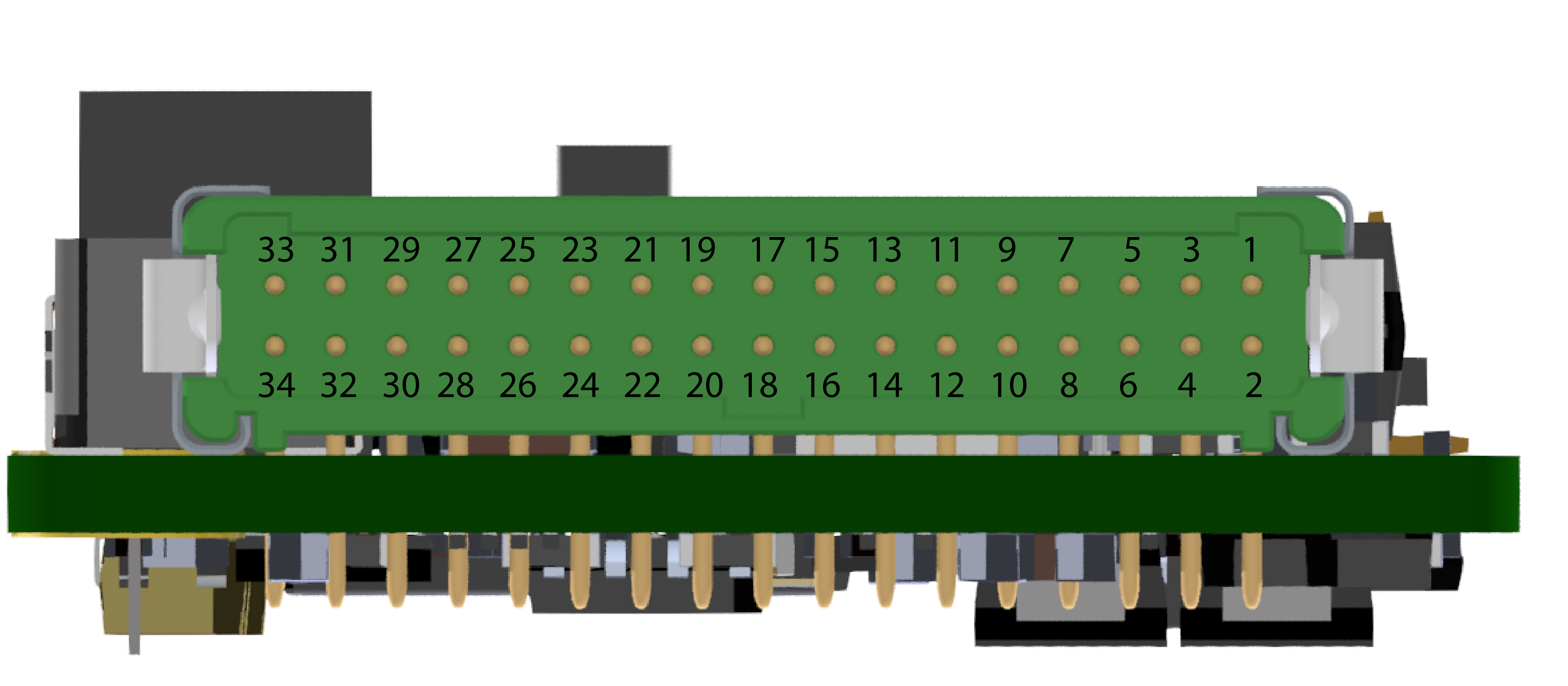

../../_images/mex_connection_pinout.png

MEX connector pinout

../../_images/pinout_harness.png

Autopilot 1x harness pinout

MEX can be used as an external magnetometer Honeywell HMR2300 connected to Veronte Autopilot 1x via serial (RS232/RS485) or CAN interfaces.

Connections via CAN, RS232 and RS485 interfaces are explained separately.

CAN

For proper operation via CAN, the connection between MEX and Autopilot 1x pins should be like this:

Autopilot 1x harness

MEX connector

PIN

Signal

Color code

PIN

Signal

25

CANA_P

White-Black

22

CAN A (P)

26

CANA_N

Brown-Black

23

CAN A (N)

28

CANB_P

Yellow-Green

20

CAN B (P)

29

CANB_N

Pink-Green

21

CAN B (N)

30

GND

Yellow-Pink

24

CAN GND

Note

If only CAN A or CAN B has been configured in the software for communications, only the corresponding pins must be connected.

For more information on CAN connection, please visit CAN - Wiring connection section of this manual.

Warning

Remember!! In Autopilot 1x, all GND pins are common. Note that pin 54 is not a common GND pin.

Important

Integration is also possible by connecting CAN A of the Autopilot 1x to CAN B of the MEX and vice versa, i.e. it does not necessarily have to be CAN A-CAN A or CAN B-CAN B.

However, any connections made must be consistent with the configuration made at software level in 1x PDI Builder and MEX PDI Builder.

RS232

For proper operation via RS232, the connection between MEX and Autopilot 1x pins should be like this:

Autopilot 1x harness

MEX connector

PIN

Signal

Color code

PIN

Signal

19

RS 232 TX

White-Pink

16

RS-232 (A) RX

19

RS-232 (B) RX

20

RS 232 RX

Pink-Brown

15

RS-232 (A) TX

18

RS-232 (B) TX

21

GND

White-Blue

17

GND

Warning

Remember!! In Autopilot 1x, all GND pins are common. Note that pin 54 is not a common GND pin.

Important

Integration is possible by connecting the RS-232(A) or RS-232(B) from MEX to the RS232 of Autopilot 1x.

However, any connections made must be consistent with the configuration made at software level in 1x PDI Builder and MEX PDI Builder.

RS485

For proper operation via RS485, the connection between MEX and Autopilot 1x pins should be like this:

Autopilot 1x harness

MEX connector

PIN

Signal

Color code

PIN

Signal

50

OUT_RS485_P

Pink-Brown

33

IN RS-485 (P)

51

OUT_RS485_N

White-Blue

31

IN RS-485 (N)

52

IN_RS485_N

Brown-Blue

32

OUT RS-485 (N)

53

IN_RS485_P

White-Red

30

OUT RS-485 (P)

54

OUT_GND

Brown-Red

34

RS-485 GND

Warning

Note that, in Autopilot 1x, this pin 54 is not a common GND pin.

Important

Any connections made must be consistent with the configuration made at software level in

1x PDI Builder and MEX PDI Builder.

PNI RM3100

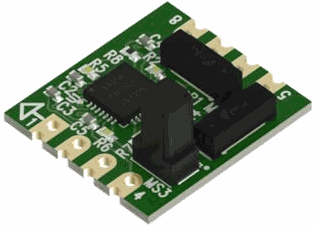

../../_images/magnetometer_pni_rm3100.png

PNI RM3100-CB

PNI RM3100-CB magnetometer must be connected to Autopilot 1x via I2C.

Important

This integration example is described for the RM3100-CB.

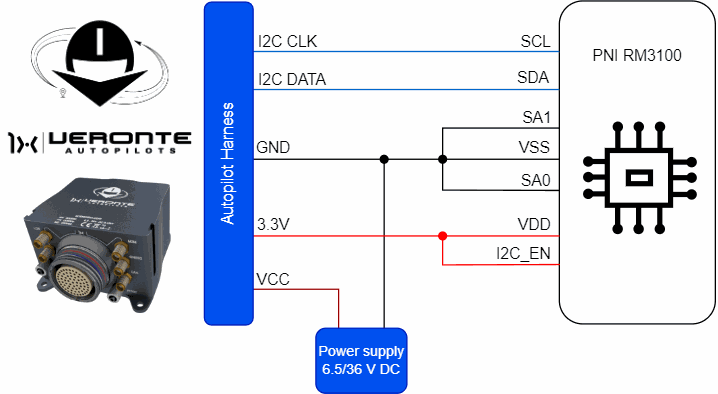

../../_images/magnetometer_pni_rm3100_diagram.png

PNI RM3100-CB - Autopilot 1x wiring diagram

../../_images/pinout_harness.png

Autopilot 1x harness pinout

Autopilot 1x harness

PNI RM3100-CB

PIN

Signal

Color code

PIN

Signal

31

I2C_CLK

White

1

SCL

32

I2C_DATA

Brown

3

SDA

33

GND

Green

4

VSS

Ground

2

SA1

Bit 1 of slave address

7

SA0

Bit 0 of slave address

34

3.3V

Yellow

8

VDD

Supply Voltage

5

I2C_EN

I2C enable pin (HIGH = I2C)

Warning

Remember!! In Autopilot 1x, all GND pins are common. Note that pin 54 is not a common GND pin.

Once the magnetometer is connected, the user must proceed to its software integration with Veronte Autopilot 1x by referring to the PNI RM3100 - Integration examples section of the 1x PDI Builder user manual.
