Connection Examples

Ground Stations

../../_images/ejemplo1.png

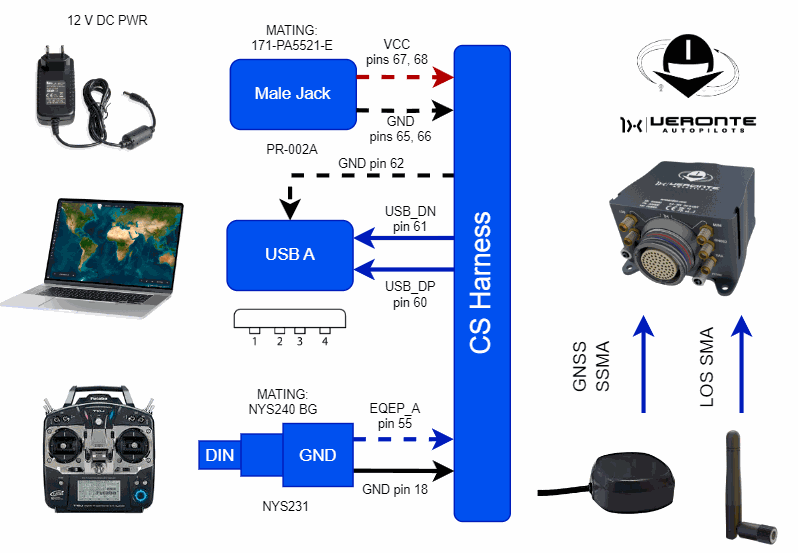

Basic Autopilot 1x Ground Station

../../_images/ejemplo2.png

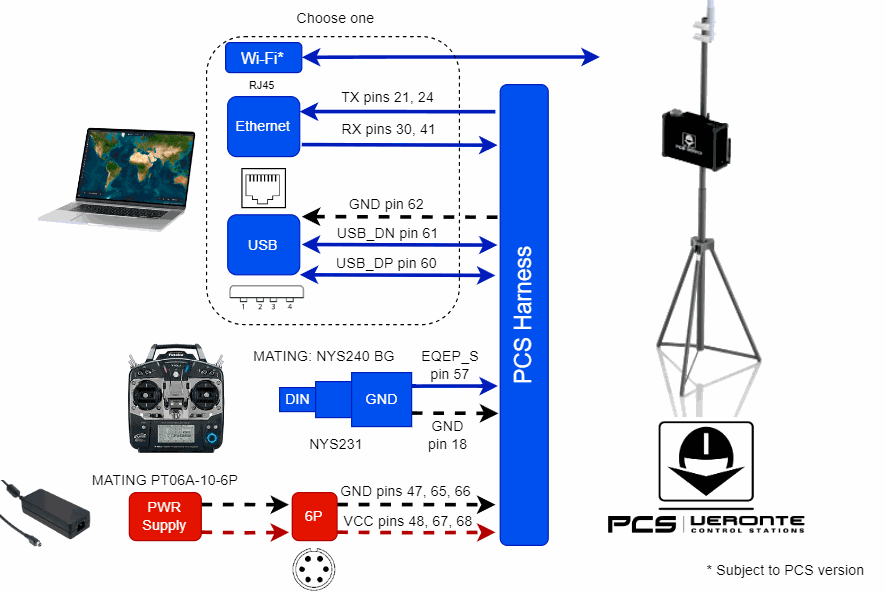

Autopilot 1x PCS Ground Station

../../_images/ejemplo3.png

Autopilot 1x Tracker Ground Station

../../_images/ejemplo4.png

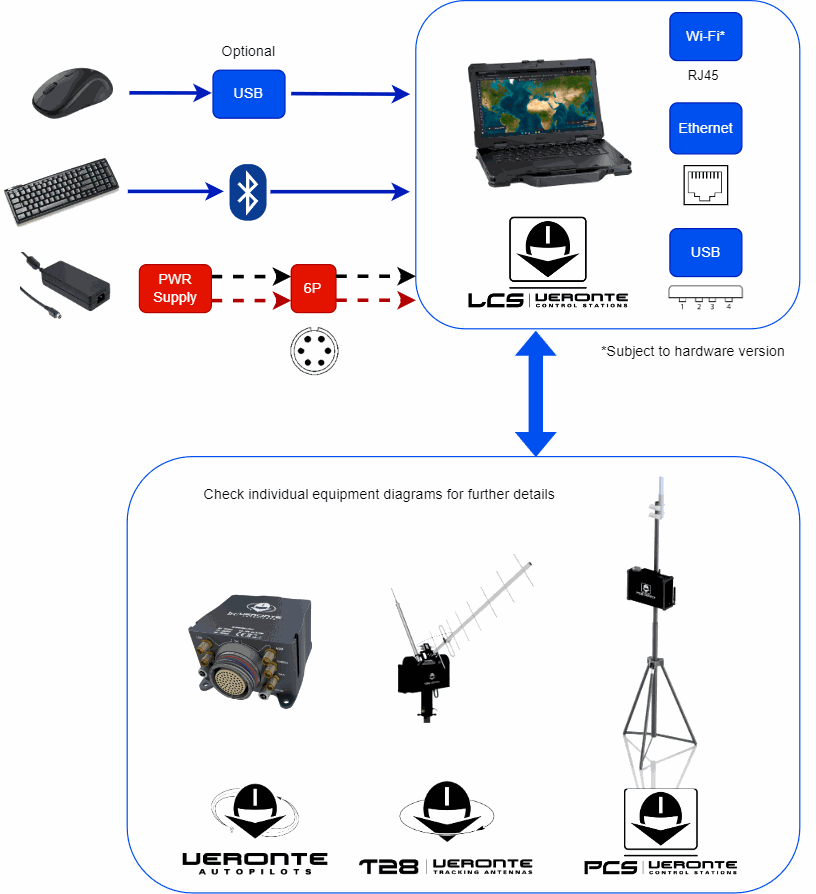

Autopilot 1x LCS Ground Station

Warning

Veronte Autopilot 1x equipment harnesses have specific pin layouts. Only use their own matting connectors, do NOT mix harnesses: misuse can lead to destruction.

Aircrafts

../../_images/hilharness.png

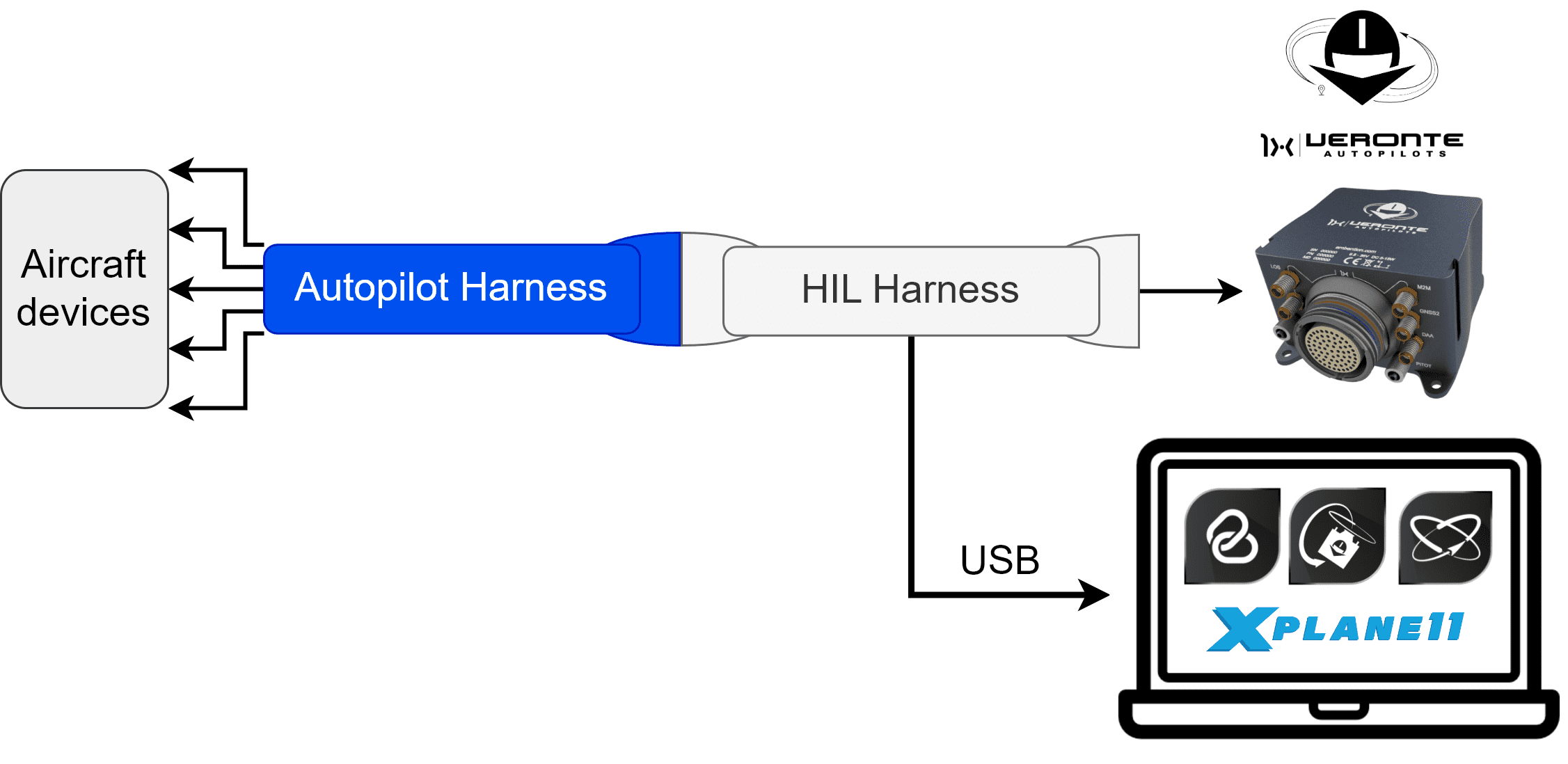

HIL Harness

../../_images/ejemplo5.png

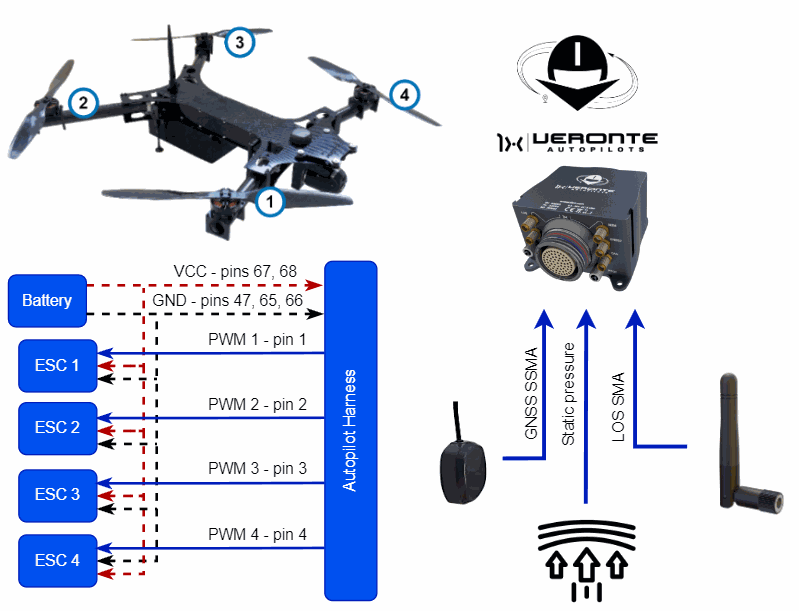

Multicopter

../../_images/ejemplo6.png

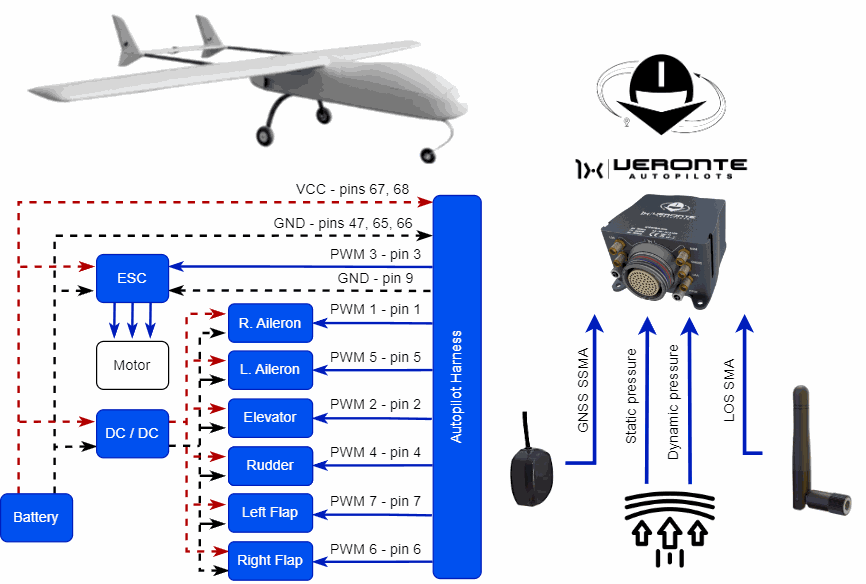

Fixed Wing Airplane

../../_images/ejemplo7.png

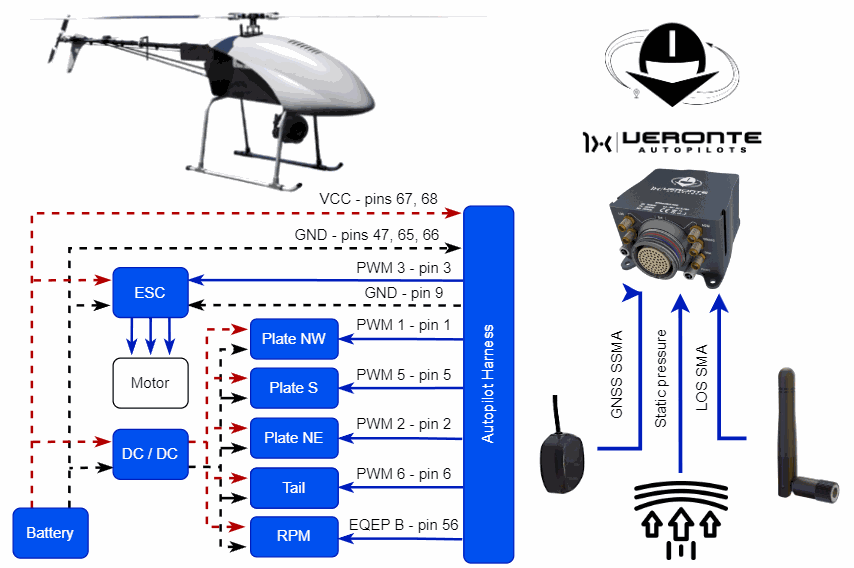

Helicopter
