Technical

Features

  • Communications

    • 2 x isolated CAN buses
    • 1 x I2C bus
    • 1 x USB port
    • 1 x RS 232 bus
    • 1 x RS 485 full duplex bus
    • 1 x UART bus
    • Over USB, RS 485 or RS 232 firmware update
    • 1 x LOS module
    • 1 x BLOS module

  • Input / Output

    • 16 x configurable input / output signals
    • 5 x analog input signals 0 - 3.3 V
    • 1 x EQEP bus

  • Power

    • 6.5 - 36 V DC required for input power supply
    • 1 x output power with 3.3 V, up to 100 mA
    • 1 x output power with 5 V, up to 100 mA

  • Protection

    • EMI shield
    • Against inrush current for connecting power supply

Note

The number of communication ports and signals can be increased with Veronte CEX or Veronte MEX.

Variants

The Veronte Autopilot 1x has 3 variants:

  • W/O DAA
  • With Remote ID
  • With ADS-B

ADS-B module

Frequency band 1090 MHz
Current consumption Averaged 140 mA
Sensitivity -80 dBm
RF output power Configurable +30 dBm (1W), +27 dBm (0.5W), +24 dBm (0.25W)
ESD protection All lines protected
MAVLink (baud) 115200 bps
AERO (baud) 115200 bps (AT commands)

RemoteID module

Frequency WiFi & Bluetooth bands
Developed according to RIN 2120-AL31
Remote identification of Unmanned Aircraft FAA Standard
Parameters Aircraft ID, position, altitude, and time mark
Compatibility FAA Remote ID Scanner App

Sensor Specifications

Accelerometers (3-axis each one)
Specification IMU 1 IMU 2 IMU 3
Range 16 g 24 g 8 g
Maximum shock 20,000 g for 0.2 ms 10,000 g/ms 14,700 m/sec2
Sensitivity 16,393 LSB/(m/sec2) 10,920 LSB/(m/sec2) 26,756,268 LSB/(m/sec2)
Update Time 1 ms
Error 3 mg (RMS noise) 190 Z axis 160 X & Y axis μg/Hz (noise density) 0.000167 X & Y axis
0.000243 Z axis
(m/sec2 / Hz) (noise density)
Offset 0 mg ± 20 mg 0.0196 m/sec2


Gyroscopes (3-axis each one)
Specification IMU 1 IMU 2 IMU 3
Range 125 to 2,000 °/sec 125 to 2,000 °/sec 2,000 °/sec
Sensitivity 228 to 14.2 LSB/°/sec 262 to 16 LSB/°/sec 655,360 to 10 LSB/°/sec
Update Time 1 ms
RMS noise 0.075 °/sec 0.1 °/sec 0.152 °/sec
Offset 0 °/sec ±1 °/sec 0.14 X & Z axis
1.4 Y axis °/sec


Magnetometers
Specification Magnetometer 0 Magnetometer 1 Magnetometer 2
Range 4 G 8 G 11 G
Sensitivity 6,842 to 1,711 LSB/G 4,096 LSB/G 0.13 mG
Update Time 8.3 ms 12.5 ms
RMS Noise 3.2 X & Y axis
4.1 Z axis mG		 0.4 mG 0.3 mG
Offset 0 G 0 G 0 G


Static Pressure
Specification Sensor 1 (STATIC port) Sensor 2 (INT port)
Range 1,000 - 120,000 Pa 30,000 - 120,000 Pa
Band Error 500 Pa 200 Pa
Resolution 1.2 to 6.5 Pa 0.5 Pa
Update Time 20 ms 31.3 ms
RMS Noise 6.5 Pa 0.35 Pa


Dynamic Pressure Sensor
Specification Pitot
Range 3 Pa (5 kt / 8 km/h sea level) to 6,900 Pa (206 kt / 382 km/h sea level)
Band Error 140 Pa
Resolution 0.42 Pa
Update Time 20 ms
Bias ±7 Pa


GNSS Receivers
Specification GNSS 1 & GNSS 2
Constellations BeiDou, Galileo, GLONASS, GPS / QZSS
Concurrent GNSS 4
Bands L2OF, L2C, E1 B/C, B2I, E5b, L1 C/A, L1OF, B1I
Position Accuracy RTK 0.01 m + 1 ppm CEP
Update Rate RTK Up to 20 Hz
Anti-jamming Active CW detection and removal, Onboard bandpass filter
Anti-spoofing Advanced anti-spoofing algorithms
Advanced Functions
  • Moving base capable
  • GNSS-based attitude estimation
Update Time 250 ms
Location Accuracy Vertical 0.01 m
Horizontal SBAS 1 m
RTK 0.01 m
Velocity Accuracy 0.05 m/s


Temperature
Device Resolution Bias
IMU 1 256 LSB/°C (16 bit) 15°C
IMU 2 8 LSB/°C 1°C
IMU 3 10 LSB/°C 5°C
MPU - 15°C
Magnetometer 0 8 LSB/°C -
Magnetometer 1 1.25 LSB/°C -
Static pressure 1 0.01 °C -
Static pressure 2 0.01 °C -


Note

An external pressure sensor is required to measure below -20 °C.

Embedded Communications

LOS module

RF baudrate 115200 baud
Transmission power 19 dBm
Receiver sensitivity -103 dBm
Frequency band ISM 2.4 GHz
LOS range Depends on the antenna employed and on the user's setup


Note

External modules can be used.

BLOS module

RF baudrate 115200 baud
Receiver sensitivity -111 dBm
Frequency band 800 MHz, 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz
Network UMTS/HSPA+, GSM/(E)GPRS
eSIM Included
Note
Its activation is optional


Note

External BLOS modules, such as satellites, can be used.

Mechanical and Electrical Specifications

Variable Value
Weight W/O DAA variant: 198 g
With Remote ID or ADS-B: 210 g
With Damping System: + 60 g
Temperature range -40 to 65 ºC
Protection rating IP67
Maximum acceleration 32 g
Voltage input 6.5 V to 36 V
Power consumption 2.2 W in maintenance mode
2.2 W in normal mode with CPU at 98 %, internal LOS module off and BLOS module off
2.6 W in normal mode with CPU at 98 %, internal LOS module on and BLOS module on

Dimensions

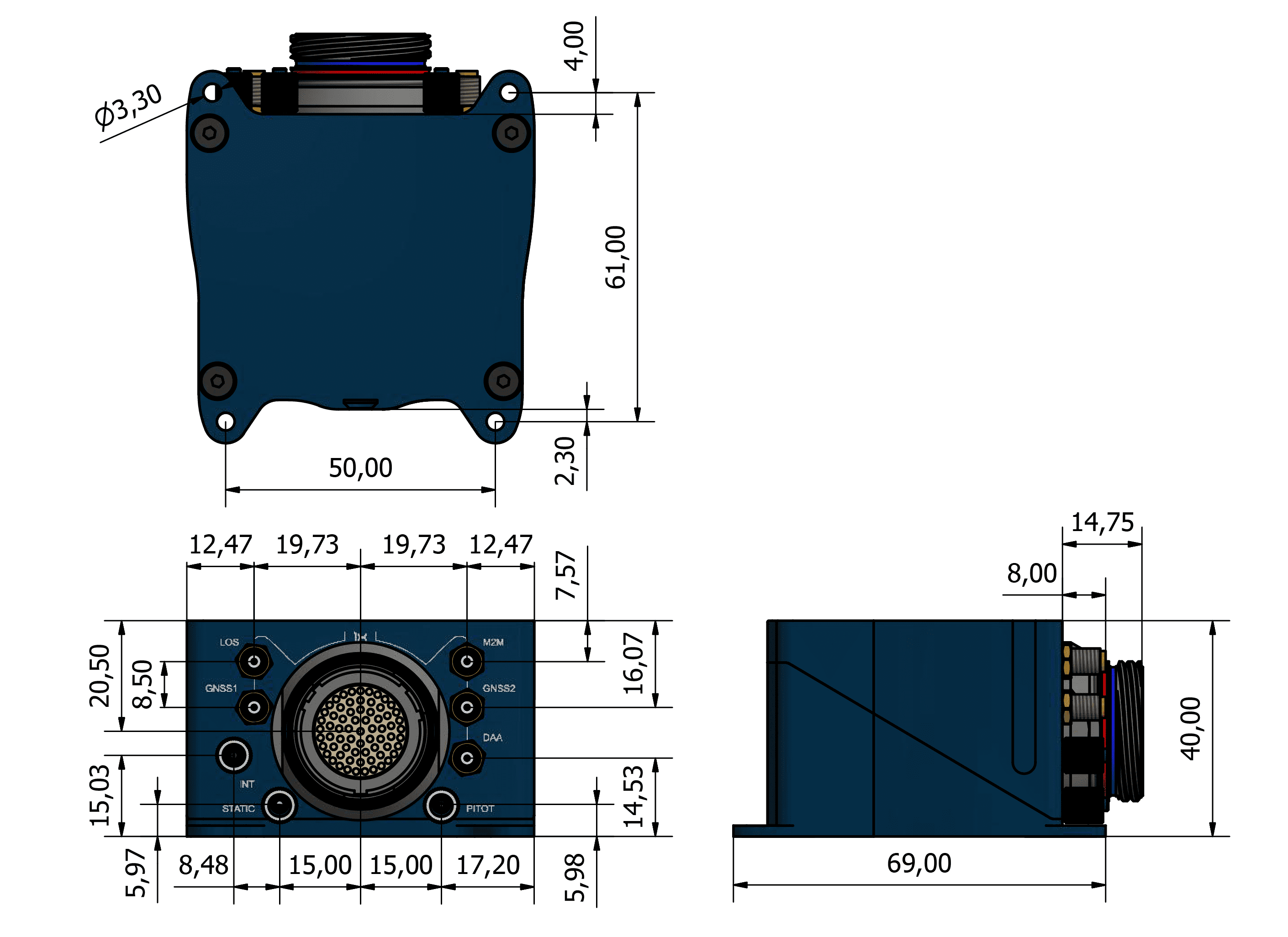

Veronte Autopilot 1x dimensions (mm)

M3 screws are recommended for mounting. In saline environments such as coastal and oceanic, the screw material must be stainless steel.

Interfaces

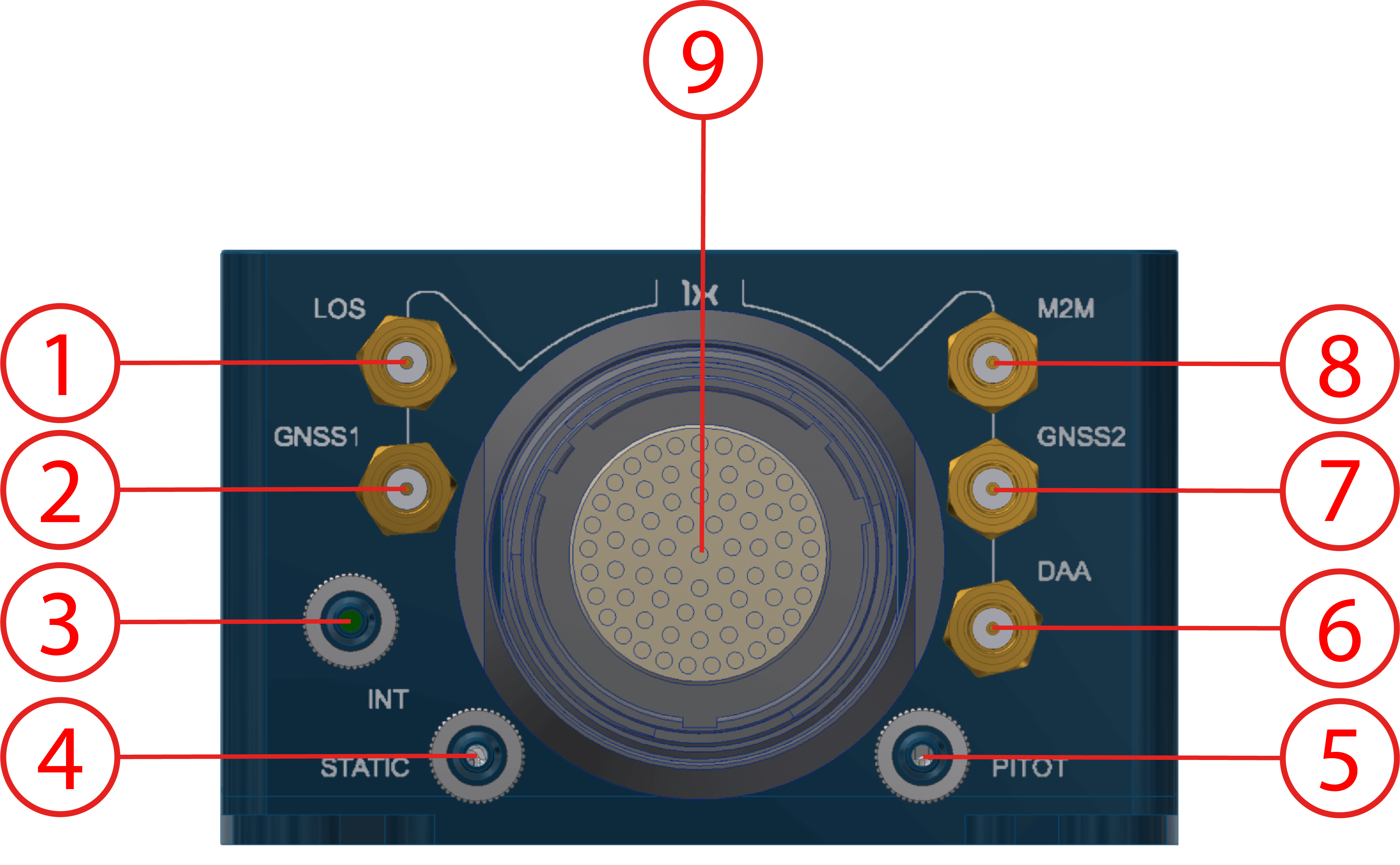

Connector Layout

Connectors
Index Connector
1 LOS SSMA connector
2 GNSS1 SSMA connector
3 Static pressure port (Int. D. 2.5 mm x Out. D. 4 mm) for static pressure sensor 2
4 Static pressure port (Int. D. 2.5 mm x Out. D. 4 mm) for static pressure sensor 1
5 Dynamic pressure port (Int. D. 2.5 mm x Out. D. 4 mm)
6 ADS-B or remote ID SSMA connector
Warning
When using ADS-B or remote ID, there must be an adequate antenna or load connection to the DAA SMA.
7 GNSS2 SSMA connector
8 M2M SSMA connector
Warning
If the BLOS module is enabled, a suitable antenna must be connected to this SSMA port. The 4G Antenna with the Embention reference P000112 is recommended.
9 68-pin connector


Both static pressure ports must be used for sensor redundancy (Y tubing connection is strongly recommended).

Warning

The static pressure port 4 is always used by Autopilot 1x to calculate speed (using the difference of pressure between ports 4 and 5), no matter which sensor is selected in configuration.

Mating Connectors

Index Autopilot 1x Connector Mating Connector
1 RF antenna (SSMA Jack Female) SSMA male Plug, low-loss cable is recommended.
2, 7 GNSS antenna (SSMA Jack Female) SSMA male Plug, low-loss cable is recommended.
Active Antenna GNSS:
  • Gain min 15dB (to compensate signal loss in RF Cable)
  • Gain max 50 dB
  • Maximum noise figure 1.5dB
  • Power supply 3.3V
  • Max current 20 mA
8 M2M antenna (SSMA Jack Female) SSMA male Plug, low-loss cable is recommended.
6 ADS-B or remote ID (SSMA Jack Female) SSMA male Plug, low-loss cable is recommended.
9 Connector HEW.LM.368.XLNP Mating connector: FGW.LM.368.XLCT (Embention reference P005550)
Mating harnesses available on demand:
  • Dev Harness 1x 4.8 (Embention reference P007043)
  • Veronte Harness Blue 68P (Embention reference P001114)
  • HIL Harness 1x 4.8 (Embention reference P007740)
