External radios

This section describes the required configuration to be performed in 1x PDI Builder to allow a correct connection between Veronte Autopilot 1x and any external radio.

External radios compatible with the Autopilot 1x, such as Microhard, DTC, Digi, Silvus, SDL and XDL24 (Embention external datalinks, contact sales@embention.com for more information).

After configuring the external radio in the corresponding software, follow the steps below:

Go to Input/Output menu Serial panel RS232 tab.

Check that these parameters are the same as the parameter values previously set in the external radio.

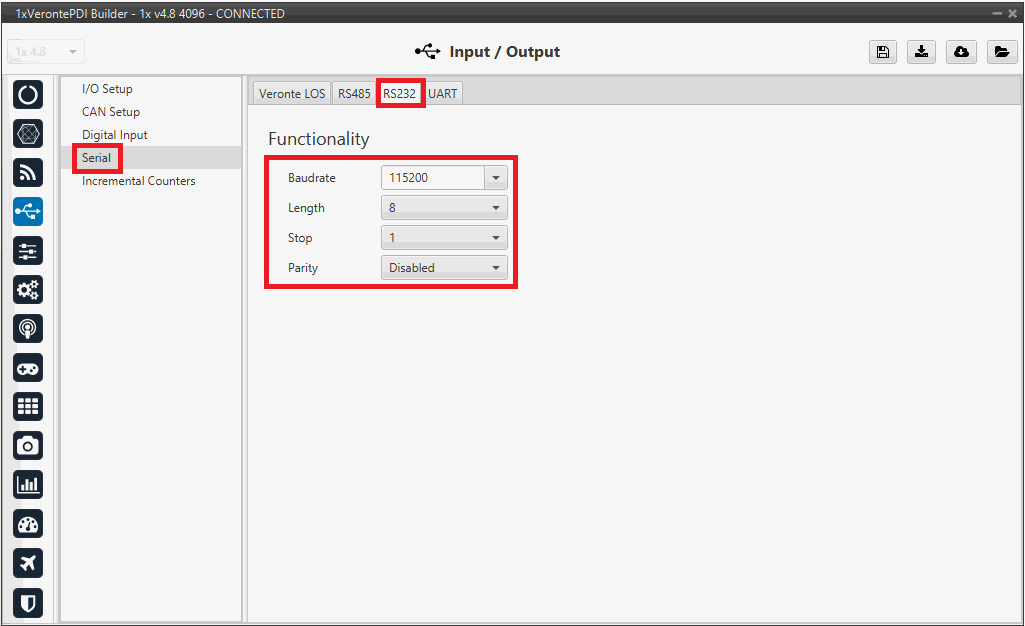

External radios - RS232 port configuration
Go to Input/Output menu I/O Setup panel.

RS-232 has to be configured as a bidirectional commgr port.

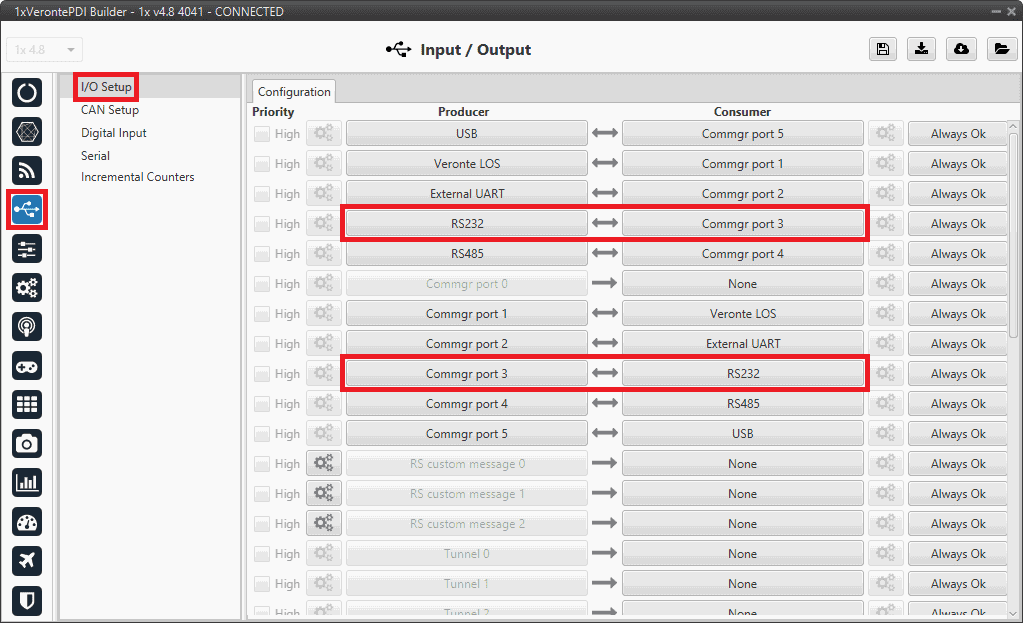

External radios - I/O Setup configuration

Note

These settings have to be made in both Autopilot 1x units (GND and AIR).
