Air Data Sensors

Veronte Autopilot 1x can be integrated with any external sensor that shares the communication interface.

Air data sensors can be configured to be considered as part of the sensors fusion.

OAT Sensor

Once OAT sensor is connected to Autopilot 1x (according to OAT sensor 428 of MGL Avionics - Integration examples section of the 1x Hardware Manual), the value can be monitored in 1x PDI Builder by using the variables ADC0 to ADC4.

Note

For pin ANALOG_0 the correspondent ADC variable in 1x PDI Builder is ADC0, for ANALOG_1 is ADC1 and so on.

Read the following steps to configure it:

  1. Go to Connections menu ADC 1 panel (This is only an example, the user must select the ADC pin where the signal is connected).

    Click on 'Create new program':

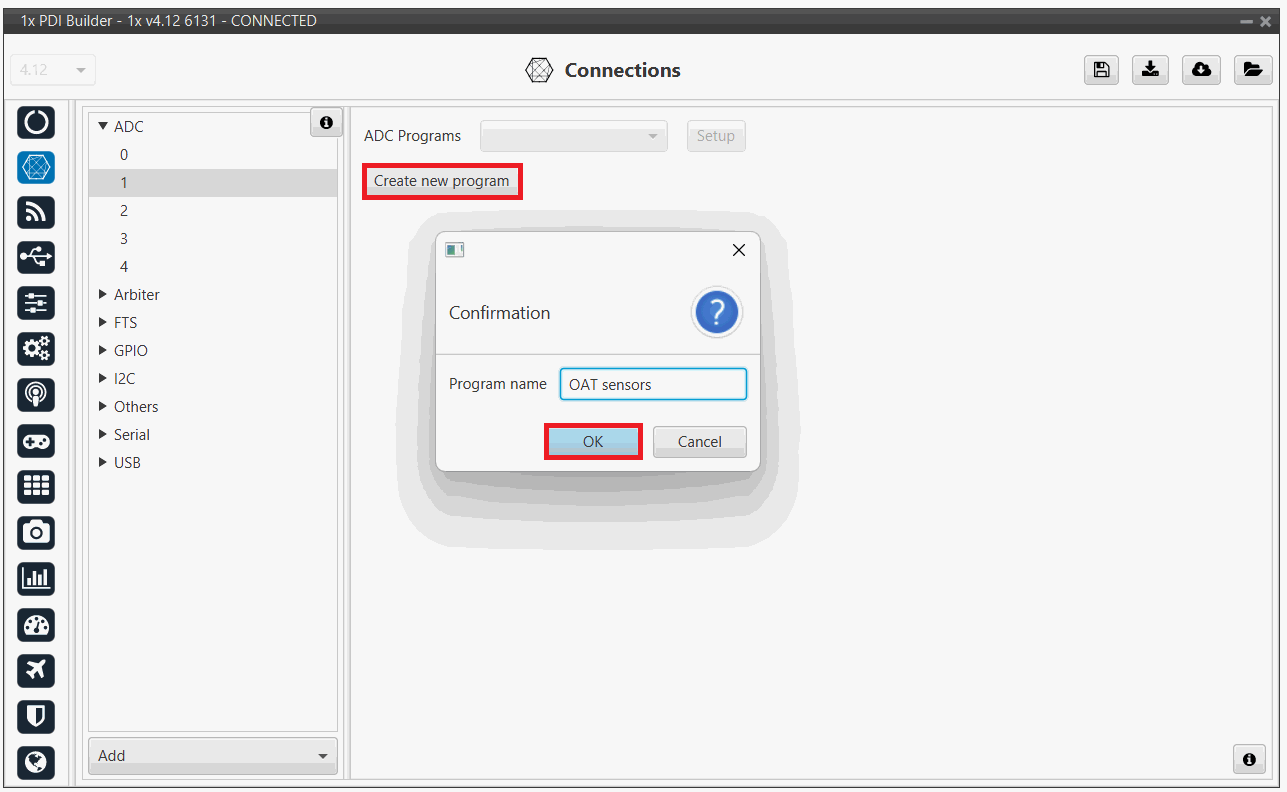

    OAT Sensor - Create ADC program

  2. Go to Block programs menu.

    Configure the following operation (for more information about blocks, read Block Programs section of this manual):

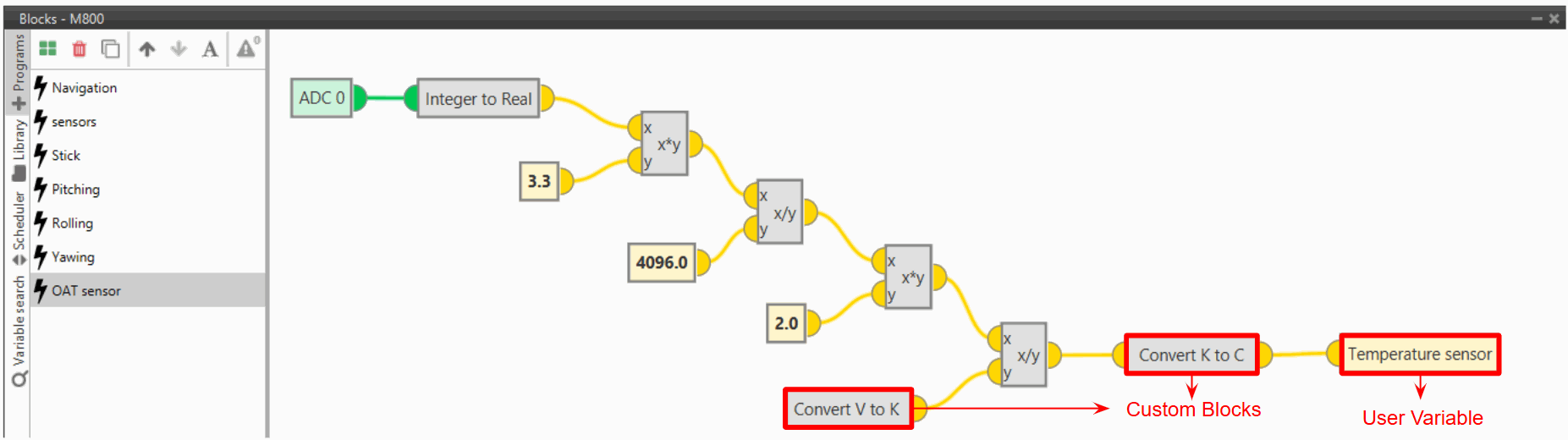

    OAT sensor - Block Programs operation

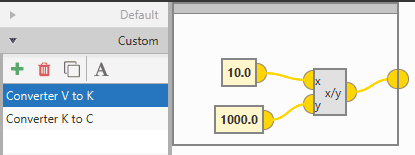

    OAT sensor - Custom block: Converter from V to K

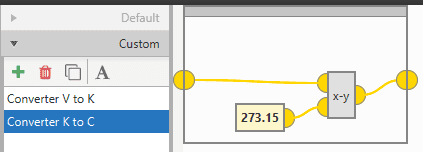

    OAT sensor - Custom block: Converter from K to °C

After implementing the operation, the variable Temperature sensor will represent the temperature (in °C) measured by the OAT sensor.

Note

If the temperature is needed in other units, the only thing necessary would be to modify the Custom block Converter K to C, or simply remove it.
